AP22850SH8-7

AP22850SH8-7

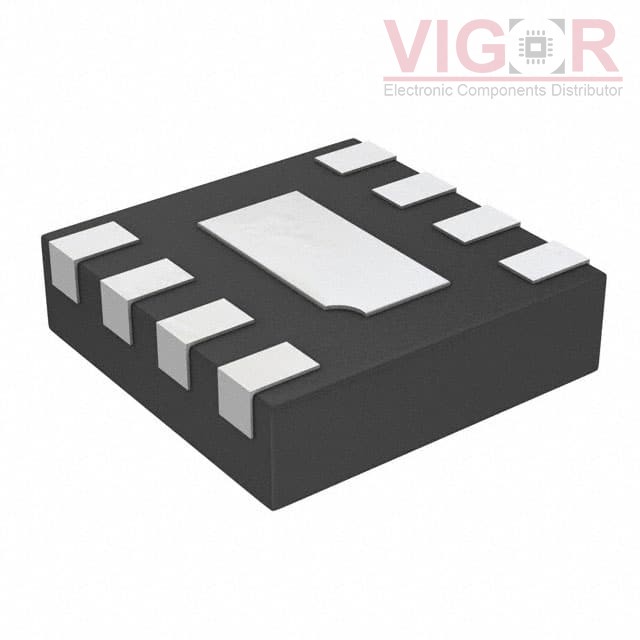

Image is for reference,
please contact us to get the real picture

Part No :

AP22850SH8-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC PWR SWITCH P-CHAN 1:1 8WDFN
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
AP22850SH8-7 PDF
Availability
2200 pieces
Unit Price
$0.85000

Current price of AP22850SH8-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AP22850SH8-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Type:General Purpose
Number of Outputs:1
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:P-Channel
Interface:On/Off
Voltage - Load:4.5V ~ 11V
Voltage - Supply (Vcc/Vdd):2.5V ~ 5.5V
Current - Output (Max):8A
Rds On (Typ):21mOhm
Input Type:-
Features:Load Discharge, Power Good, Slew Rate Controlled
Fault Protection:-
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:8-WDFN (2x2)
Package / Case:8-VFDFN Exposed Pad
