ADP196ACBZ-R7

ADP196ACBZ-R7

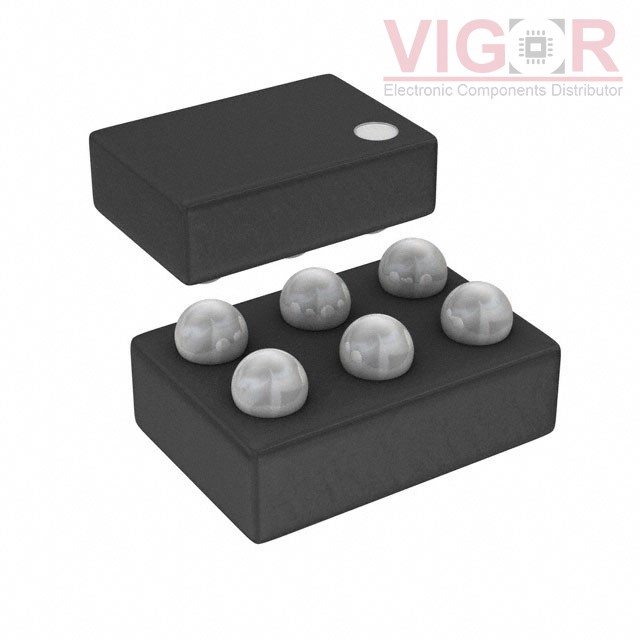

Image is for reference,
please contact us to get the real picture

Part No :

ADP196ACBZ-R7

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC PWR SWITCH N-CHAN 1:1 6WLCSP
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
ADP196ACBZ-R7 PDF
Availability
2277 pieces
Unit Price
$1.56000

Current price of ADP196ACBZ-R7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADP196ACBZ-R7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Type:General Purpose
Number of Outputs:1
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:N-Channel
Interface:On/Off
Voltage - Load:1.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):3A
Rds On (Typ):10mOhm
Input Type:Non-Inverting
Features:Slew Rate Controlled
Fault Protection:Current Limiting (Fixed), Over Temperature
Operating Temperature:-40°C ~ 105°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-WLCSP (1.45x0.95)
Package / Case:6-WFBGA, WLCSP
