AP2301AFGE-7

AP2301AFGE-7

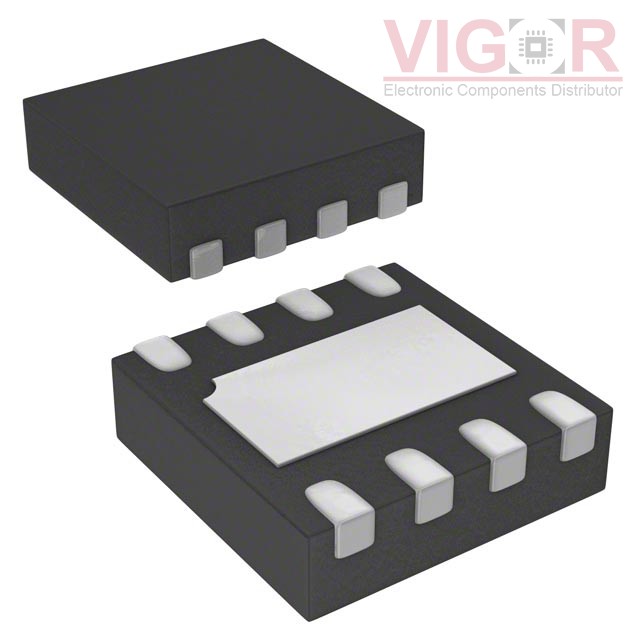

Image is for reference,
please contact us to get the real picture

Part No :

AP2301AFGE-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC PWR SWITCH P-CHAN 1:1 8UDFN
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
AP2301AFGE-7 PDF
Availability
4762 pieces
Unit Price
$0.19798

Current price of AP2301AFGE-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AP2301AFGE-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Switch Type:USB Switch
Number of Outputs:1
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:P-Channel
Interface:On/Off
Voltage - Load:2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):2A
Rds On (Typ):70mOhm
Input Type:Non-Inverting
Features:Load Discharge, Slew Rate Controlled, Status Flag
Fault Protection:Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:U-DFN3030-8 (Type E)
Package / Case:8-UDFN Exposed Pad
