L9822EPD

L9822EPD

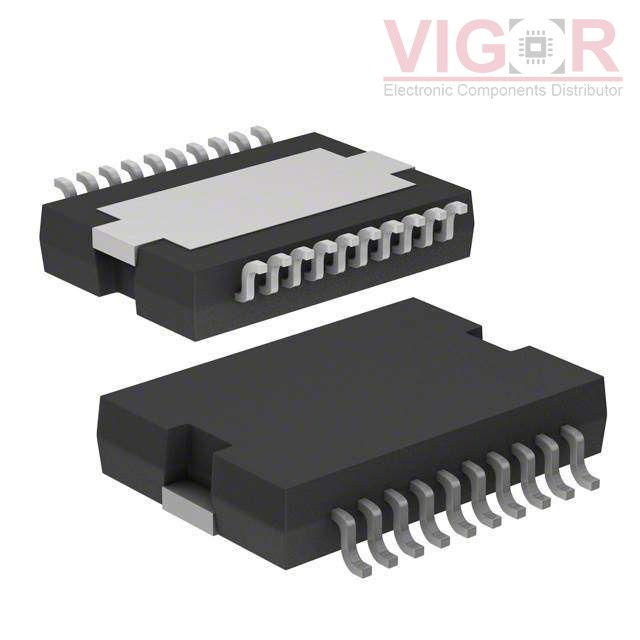

Image is for reference,
please contact us to get the real picture

Part No :

L9822EPD

Manufacturer
STMicroelectronics
Description
IC PWR DRIVER 1:8 PWRSO20
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
L9822EPD PDF
Availability
7500 pieces
Unit Price
$6.18000

Current price of L9822EPD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

L9822EPD Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Switch Type:Relay, Solenoid Driver
Number of Outputs:8
Ratio - Input:Output:1:8
Output Configuration:Low Side
Output Type:-
Interface:SPI
Voltage - Load:4.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd):-
Current - Output (Max):-
Rds On (Typ):550mOhm
Input Type:-
Features:Status Flag
Fault Protection:Current Limiting (Fixed)
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PowerSO-20
Package / Case:20-SOIC (0.433", 11.00mm Width) Exposed Pad
