L9349TR-LF

L9349TR-LF

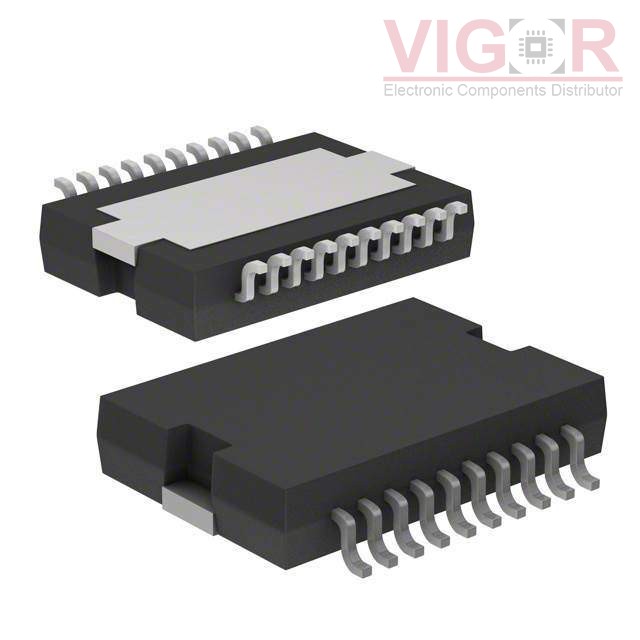

Image is for reference,
please contact us to get the real picture

Part No :

L9349TR-LF

Manufacturer
STMicroelectronics
Description
IC PWR SWITCH N-CHAN 1:1 PWRSO20
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
L9349TR-LF PDF
Availability
1202 pieces
Unit Price
$3.65000

Current price of L9349TR-LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

L9349TR-LF Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Type:General Purpose
Number of Outputs:4
Ratio - Input:Output:1:1
Output Configuration:Low Side
Output Type:N-Channel
Interface:On/Off
Voltage - Load:4.5V ~ 32V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):3A, 5A
Rds On (Typ):200mOhm, 300mOhm
Input Type:Non-Inverting
Features:Status Flag
Fault Protection:Open Load Detect, Over Temperature
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PowerSO-20
Package / Case:20-PowerSOIC (0.433", 11.00mm Width)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MP5094GJ-Z

MP5094GJ-Z

DUAL-CHANNEL 12V/5V CURRENT-LIMI

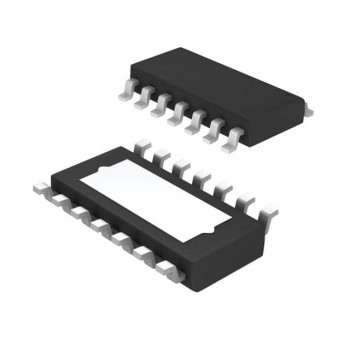

HOT BTT60302EKBXUMA1
