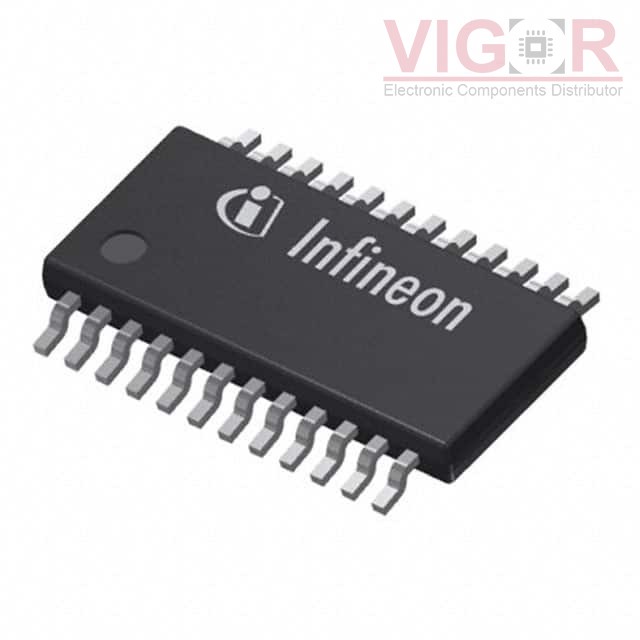

BTT62004ESAXUMA1

Image is for reference,
please contact us to get the real picture

Part No :: BTT62004ESAXUMA1

Manufacturer: IR (Infineon Technologies)

Description: IC PWR SWTCH N-CHAN 1:1 TSDSO-24

Catalog: PMIC - Power Distribution Switches, Load Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: BTT62004ESAXUMA1 PDF

Availability: 2554 pieces

Unit Price: ~~$4.69000~~

Current price of BTT62004ESAXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BTT62004ESAXUMA1 Specifications

Type	Description
Series:	Automotive, AEC-Q100, PROFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	4
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	5V ~ 36V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	1A
Rds On (Typ):	200mOhm
Input Type:	Non-Inverting
Features:	-
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TSDSO-24-21
Package / Case:	24-TSSOP (0.154", 3.90mm Width) Exposed Pad

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

TPS2236DAP

TPS2236 DUAL SLOT EXPRESSCARD PO

HOT

MC17XSF500EK-NXP

HIGH-SIDE SWITCH, 18V, PENTA 17M

HOT

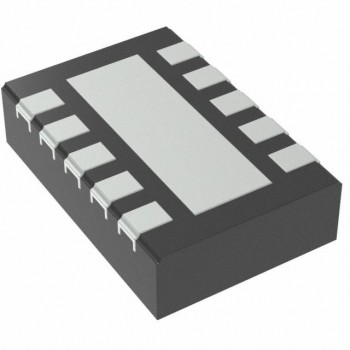

TPS22968NQDMGTQ1
