MAX4821EUP+

MAX4821EUP+

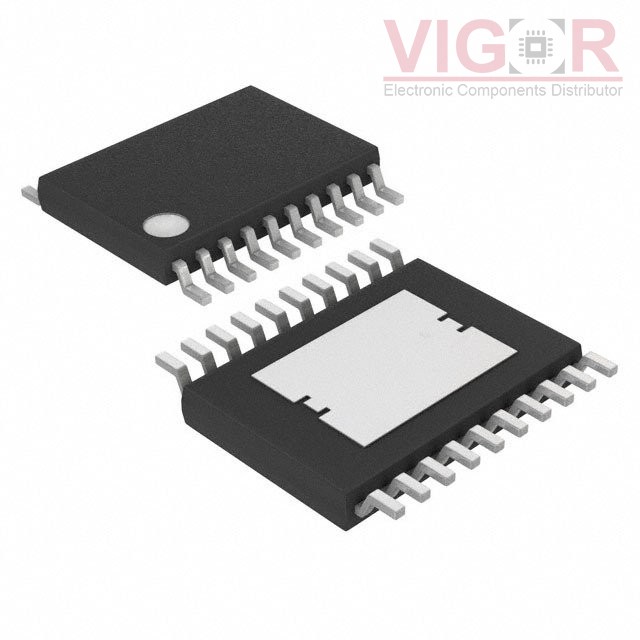

Image is for reference,
please contact us to get the real picture

Part No :

MAX4821EUP+

Manufacturer
Maxim Integrated
Description
IC PWR DRIVER N-CHAN 1:8 20TSSOP
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
MAX4821EUP+ PDF
Availability
120000 pieces
Unit Price
$3.94000

Current price of MAX4821EUP+ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAX4821EUP+ Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Switch Type:Relay, Solenoid Driver
Number of Outputs:8
Ratio - Input:Output:1:8
Output Configuration:Low Side
Output Type:N-Channel
Interface:Parallel, Serial
Voltage - Load:2.3V ~ 5.5V
Voltage - Supply (Vcc/Vdd):-
Current - Output (Max):70mA
Rds On (Typ):2Ohm
Input Type:-
Features:-
Fault Protection:-
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:20-TSSOP-EP
Package / Case:20-TSSOP (0.173", 4.40mm Width) Exposed Pad
