TPS2560ADRCR

TPS2560ADRCR

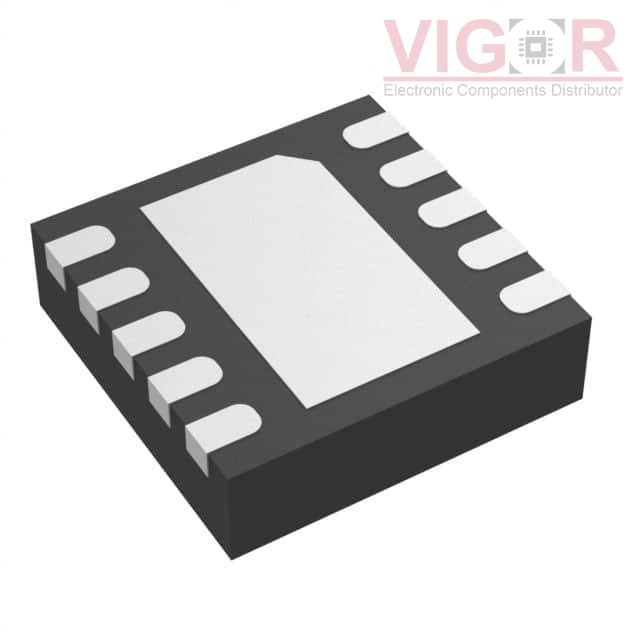

Image is for reference,
please contact us to get the real picture

Part No :

TPS2560ADRCR

Manufacturer
Texas Instruments
Description
IC PWR SWITCH N-CHAN 1:2 10VSON
Catalog
PMIC - Power Distribution Switches, Load Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
TPS2560ADRCR PDF
Availability
2497 pieces
Unit Price
$0.56392

Current price of TPS2560ADRCR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPS2560ADRCR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Type:General Purpose
Number of Outputs:2
Ratio - Input:Output:1:2
Output Configuration:High Side
Output Type:N-Channel
Interface:On/Off
Voltage - Load:2.5V ~ 6.5V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):2.5A
Rds On (Typ):44mOhm
Input Type:Non-Inverting
Features:Slew Rate Controlled, Status Flag
Fault Protection:Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:10-VSON (3x3)
Package / Case:10-VFDFN Exposed Pad
