UCC3806NG4

UCC3806NG4

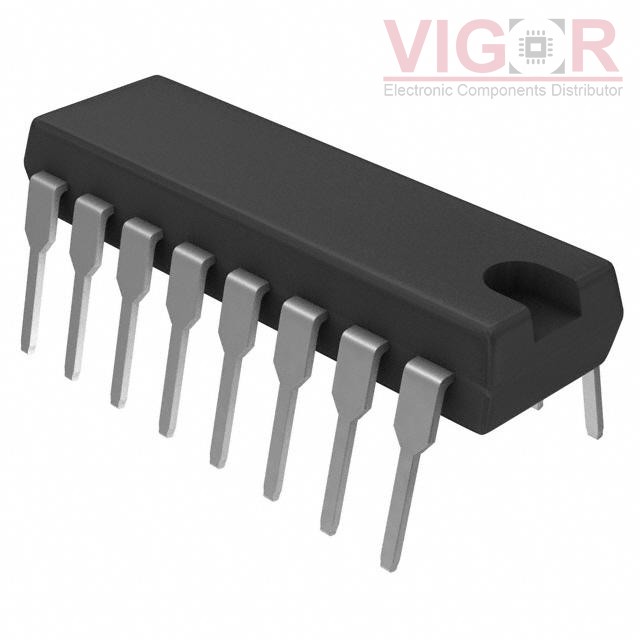

Image is for reference,
please contact us to get the real picture

Part No :

UCC3806NG4

Manufacturer
Texas Instruments
Description
IC REG CTRLR MULT TOPOLOGY 16DIP
Catalog
PMIC - Voltage Regulators - DC DC Switching Controllers
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
UCC3806NG4 PDF
Availability
3670 pieces
Unit Price
$10.81100

Current price of UCC3806NG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UCC3806NG4 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Type:Transistor Driver
Function:Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration:Positive, Isolation Capable
Topology:Buck, Boost, Flyback, Forward Converter
Number of Outputs:2
Output Phases:1
Voltage - Supply (Vcc/Vdd):8V ~ 14.5V
Frequency - Switching:47kHz
Duty Cycle (Max):50%
Synchronous Rectifier:Yes
Clock Sync:No
Serial Interfaces:-
Control Features:Current Limit, Enable, Frequency Control
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Through Hole
Package / Case:16-DIP (0.300", 7.62mm)
Supplier Device Package:16-PDIP
