TPS54561DPRR

TPS54561DPRR

Image is for reference,
please contact us to get the real picture

Part No :

TPS54561DPRR

Manufacturer
Texas Instruments
Description
IC REG BCK SPLIT RAIL ADJ 10WSON
Catalog
PMIC - Voltage Regulators - DC DC Switching Regulators
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
TPS54561DPRR PDF
Availability
8868 pieces
Unit Price
$5.69000

Current price of TPS54561DPRR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPS54561DPRR Specifications
Type Description
Series:Eco-Mode™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Output Type:Adjustable
Number of Outputs:1
Voltage - Input (Min):4.5V
Voltage - Input (Max):60V
Voltage - Output (Min/Fixed):0.8V
Voltage - Output (Max):59V
Current - Output:5A
Frequency - Switching:100kHz ~ 2.5MHz
Synchronous Rectifier:No
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:10-WDFN Exposed Pad
Supplier Device Package:10-WSON (4x4)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LT1934IDCB#TRMPBF

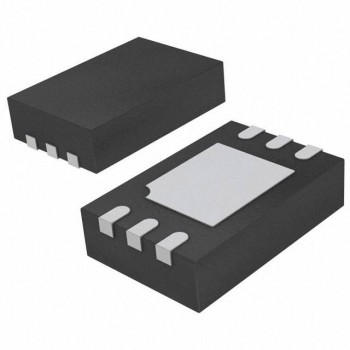

LT1934IDCB#TRMPBF

IC REG BUCK ADJ 300MA 6DFN
HOT RT7274GSP

RT7274GSP

IC REG BUCK ADJUSTABLE 2A 8SOP
HOT LM5017SD/NOPB

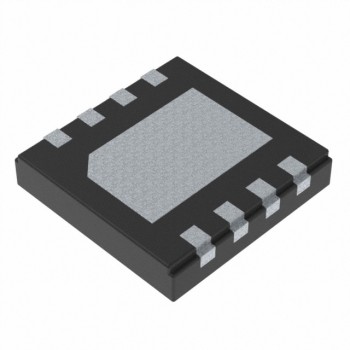

LM5017SD/NOPB
