PAM2306DYPAA

PAM2306DYPAA

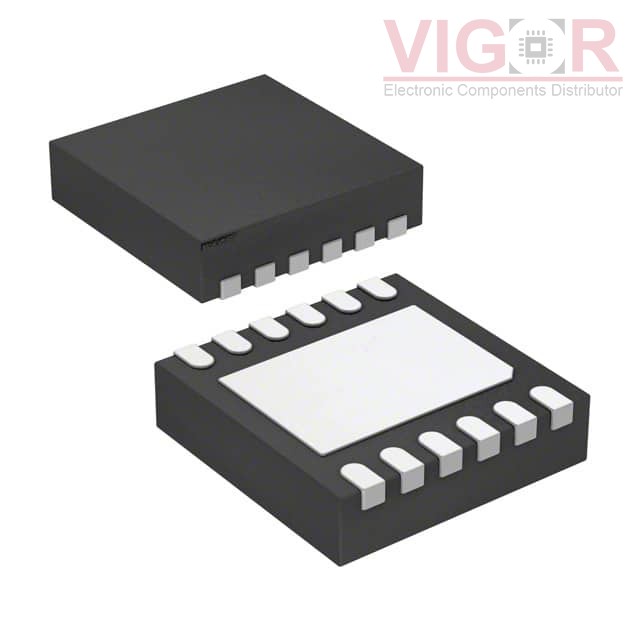

Image is for reference,
please contact us to get the real picture

Part No :

PAM2306DYPAA

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC REG BUCK ADJ 1A DL 12WDFN
Catalog
PMIC - Voltage Regulators - DC DC Switching Regulators
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
PAM2306DYPAA PDF
Availability
708 pieces
Unit Price
$0.76000

Current price of PAM2306DYPAA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PAM2306DYPAA Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Output Type:Adjustable
Number of Outputs:2
Voltage - Input (Min):2.5V
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):0.6V
Voltage - Output (Max):5.5V
Current - Output:1A
Frequency - Switching:1.5MHz
Synchronous Rectifier:Yes
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:12-WFDFN Exposed Pad
Supplier Device Package:12-WDFN (3x3)
