RP509Z301B-E2-F

RP509Z301B-E2-F

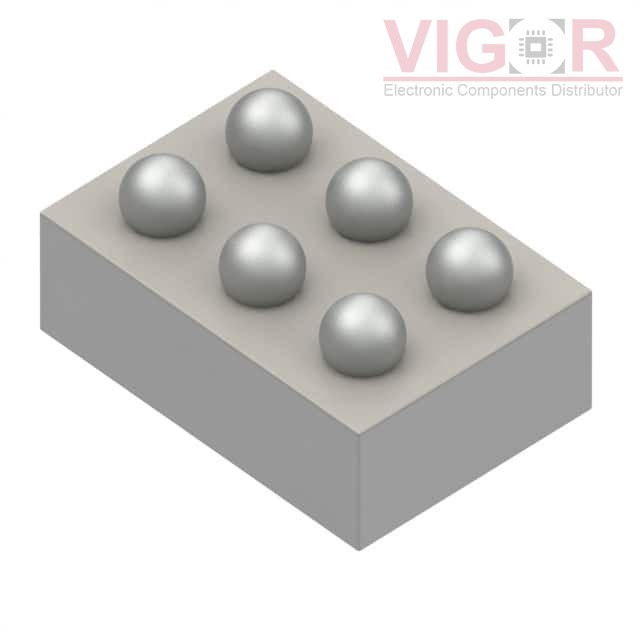

Image is for reference,
please contact us to get the real picture

Part No :

RP509Z301B-E2-F

Manufacturer
RICOH Electronic Devices Co., LTD.
Description
0.5A/1A 6MHZ PWM/VFM STEP-DOWN D
Catalog
PMIC - Voltage Regulators - DC DC Switching Regulators
Shipped from
HK warehouse
Expected Shipping Date
Aug 27 - Aug 31 2025
DataSheet
RP509Z301B-E2-F PDF
Availability
4000 pieces
Unit Price
$0.34500

Current price of RP509Z301B-E2-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RP509Z301B-E2-F Specifications
Type Description
Series:RP509x
Package:Tape & Reel (TR)
Part Status:Active
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Output Type:Fixed
Number of Outputs:1
Voltage - Input (Min):2.3V
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):3V
Voltage - Output (Max):-
Current - Output:1A
Frequency - Switching:6MHz
Synchronous Rectifier:Yes
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:6-WFBGA, WLCSP
Supplier Device Package:WLCSP-6-P6
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
