LTC3523EUD#TRPBF

LTC3523EUD#TRPBF

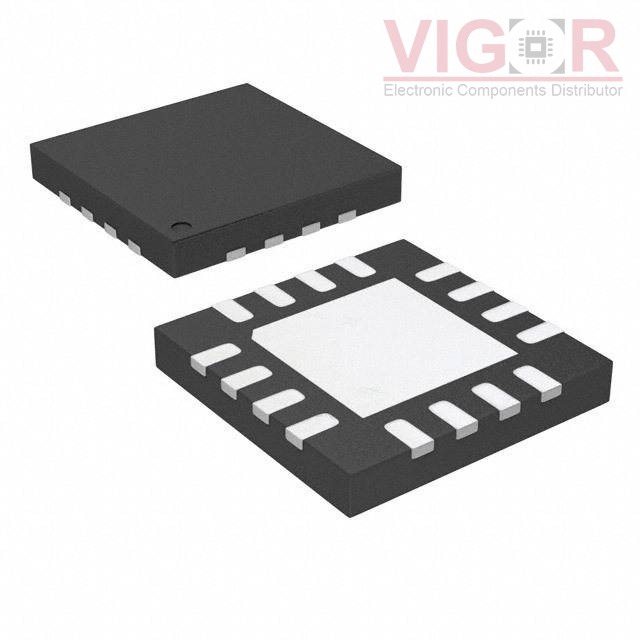

Image is for reference,
please contact us to get the real picture

Part No :

LTC3523EUD#TRPBF

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC REG BUCK BST ADJ DL 16QFN
Catalog
PMIC - Voltage Regulators - DC DC Switching Regulators
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
LTC3523EUD#TRPBF PDF
Availability
3192 pieces
Unit Price
$4.29000

Current price of LTC3523EUD#TRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LTC3523EUD#TRPBF Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Function:Step-Up, Step-Down
Output Configuration:Positive
Topology:Buck, Boost
Output Type:Adjustable
Number of Outputs:2
Voltage - Input (Min):1.8V
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):0.615V
Voltage - Output (Max):5.5V
Current - Output:400mA, 600mA (Switch)
Frequency - Switching:1.2MHz
Synchronous Rectifier:Yes
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-WFQFN Exposed Pad
Supplier Device Package:16-QFN-EP (3x3)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MAX766EPA+

MAX766EPA+

IC REG BCK BST ADJ/-15V 8DIP
HOT MAX1697SEUT

MAX1697SEUT

INVERTING CHARGE PUMP

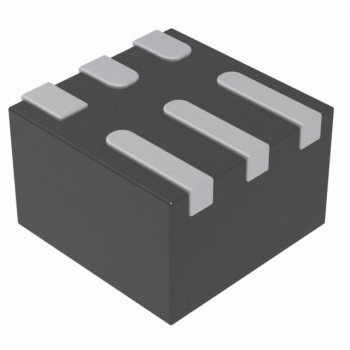

HOT TPS62825DMQT
