LM2825N-12

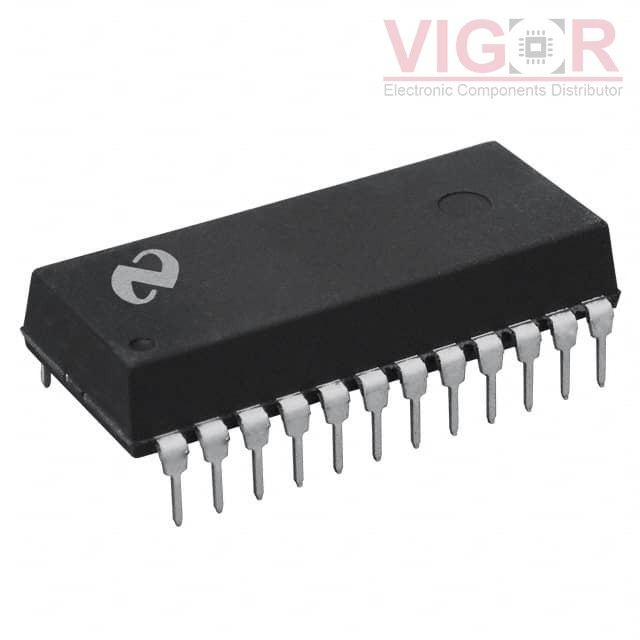

Image is for reference,
please contact us to get the real picture

Part No :: LM2825N-12

Manufacturer: Texas Instruments

Description: IC REG BUCK 12V 1A 24DIP

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

Shipped from: HK warehouse

Expected Shipping Date: Aug 27 - Aug 31 2025

DataSheet: LM2825N-12 PDF

Availability: 2400 pieces

Unit Price: ~~$0.00000~~

Current price of LM2825N-12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LM2825N-12 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Fixed
Number of Outputs:	1
Voltage - Input (Min):	15V
Voltage - Input (Max):	40V
Voltage - Output (Min/Fixed):	12V
Voltage - Output (Max):	-
Current - Output:	1A
Frequency - Switching:	150kHz
Synchronous Rectifier:	No
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	24-DIP (0.600", 15.24mm)
Supplier Device Package:	24-PDIP

Please confirm the specifications of the products when ordering.
