ADP7105ACPZ-3.3-R7

ADP7105ACPZ-3.3-R7

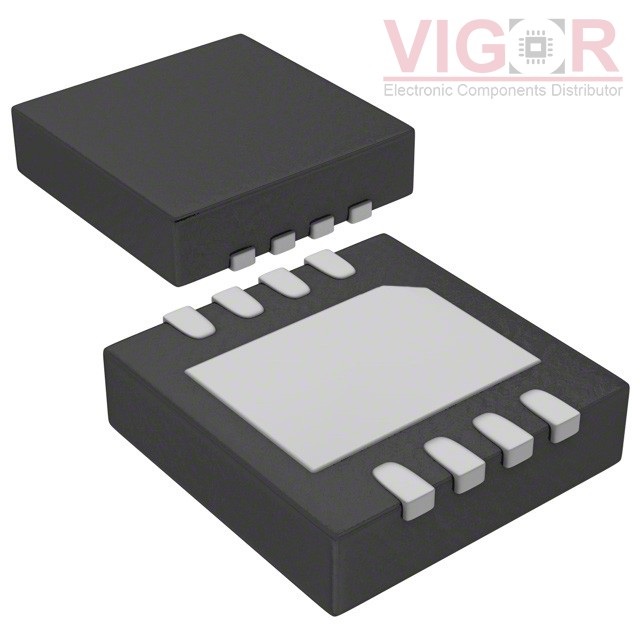

Image is for reference,
please contact us to get the real picture

Part No :

ADP7105ACPZ-3.3-R7

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC REG LINEAR 3.3V 500MA 8LFCSP
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
ADP7105ACPZ-3.3-R7 PDF
Availability
3370 pieces
Unit Price
$2.14500

Current price of ADP7105ACPZ-3.3-R7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADP7105ACPZ-3.3-R7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):20V
Voltage - Output (Min/Fixed):3.3V
Voltage - Output (Max):-
Voltage Dropout (Max):0.35V @ 500mA
Current - Output:500mA
Current - Quiescent (Iq):900 µA
Current - Supply (Max):1.6 mA
PSRR:60dB ~ 50dB (10kHz ~ 100kHz)
Control Features:Enable, Power Good, Soft Start
Protection Features:Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-WFDFN Exposed Pad, CSP
Supplier Device Package:8-LFCSP-WD (3x3)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TPS77825PWPR

TPS77825PWPR

IC REG LIN 2.5V 750MA 20HTSSOP
HOT ISL9011IRJMZ

ISL9011IRJMZ

IC REG LINEAR 2.8V/3V 10DFN

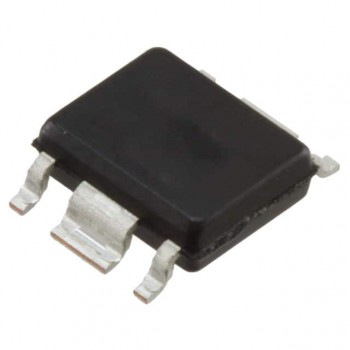

HOT S-1172B20-E6T1U
