BA7809CP-E2

BA7809CP-E2

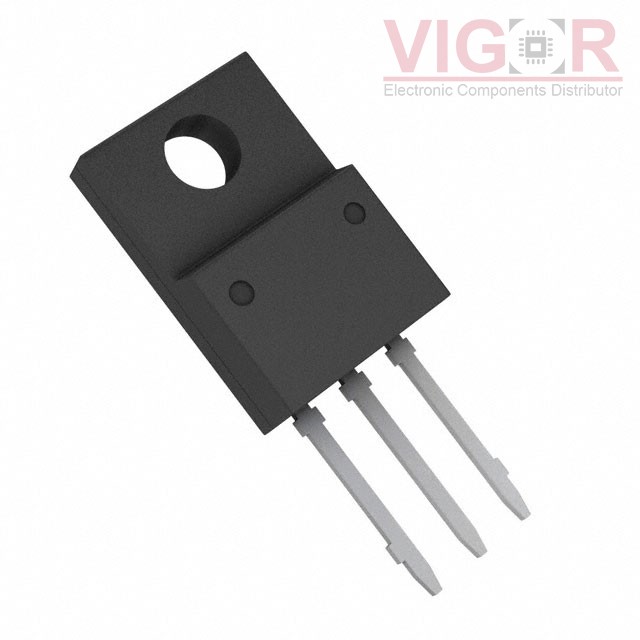

Image is for reference,
please contact us to get the real picture

Part No :

BA7809CP-E2

Manufacturer
ROHM Semiconductor
Description
IC REG LINEAR 9V 1A TO220CP-3
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
BA7809CP-E2 PDF
Availability
864 pieces
Unit Price
$0.84000

Current price of BA7809CP-E2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BA7809CP-E2 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):26V
Voltage - Output (Min/Fixed):9V
Voltage - Output (Max):-
Voltage Dropout (Max):2V @ 1A (Typ)
Current - Output:1A
Current - Quiescent (Iq):8 mA
Current - Supply (Max):800 µA
PSRR:64dB (120Hz)
Control Features:-
Protection Features:Over Current, Over Temperature
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:TO-220-3 Cropped Leads
Supplier Device Package:TO-220CP-3
