TPS74301RGWR

TPS74301RGWR

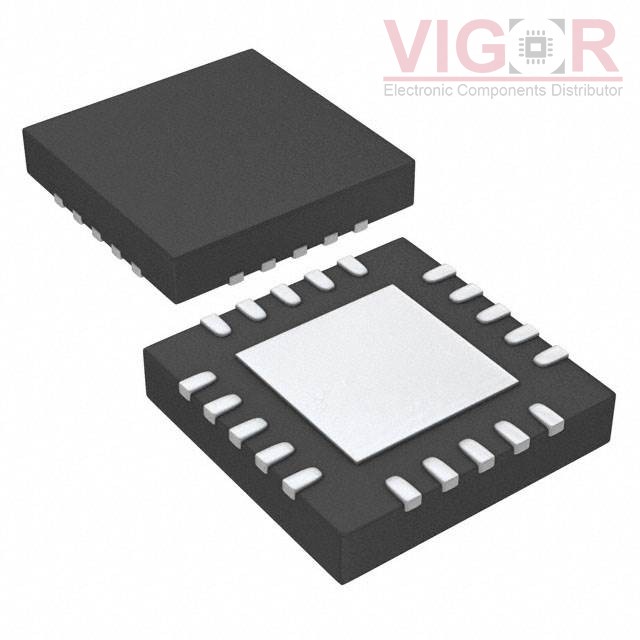

Image is for reference,
please contact us to get the real picture

Part No :

TPS74301RGWR

Manufacturer
Texas Instruments
Description
IC REG LIN POS ADJ 1.5A 20VQFN
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
TPS74301RGWR PDF
Availability
1502 pieces
Unit Price
$4.94000

Current price of TPS74301RGWR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPS74301RGWR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):0.8V
Voltage - Output (Max):3.6V
Voltage Dropout (Max):0.12V @ 1.5A
Current - Output:1.5A
Current - Quiescent (Iq):115 µA
Current - Supply (Max):1.5 mA
PSRR:73dB ~ 42dB (1kHz ~ 800kHz)
Control Features:Enable, Power Good, Tracking
Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:20-VQFN Exposed Pad
Supplier Device Package:20-VQFN (5x5)
