NCP156AAFCT105280T2G

NCP156AAFCT105280T2G

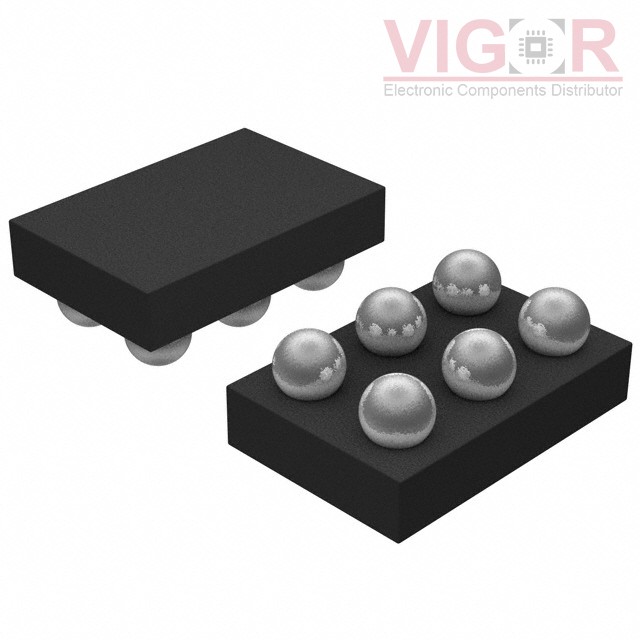

Image is for reference,
please contact us to get the real picture

Part No :

NCP156AAFCT105280T2G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC REG LINEAR 1.05V/2.8V 6WLCSP
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
NCP156AAFCT105280T2G PDF
Availability
531 pieces
Unit Price
$0.18598

Current price of NCP156AAFCT105280T2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NCP156AAFCT105280T2G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:2
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):1.05V, 2.8V
Voltage - Output (Max):-
Voltage Dropout (Max):0.15V @ 500mA, 0.16V @ 250mA
Current - Output:500mA, 250mA
Current - Quiescent (Iq):-
Current - Supply (Max):-
PSRR:70dB (1kHz), 92dB (1kHz)
Control Features:Enable
Protection Features:Over Current, Over Temperature
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-XFBGA, WLCSP
Supplier Device Package:6-WLCSP (1.2x0.80)
