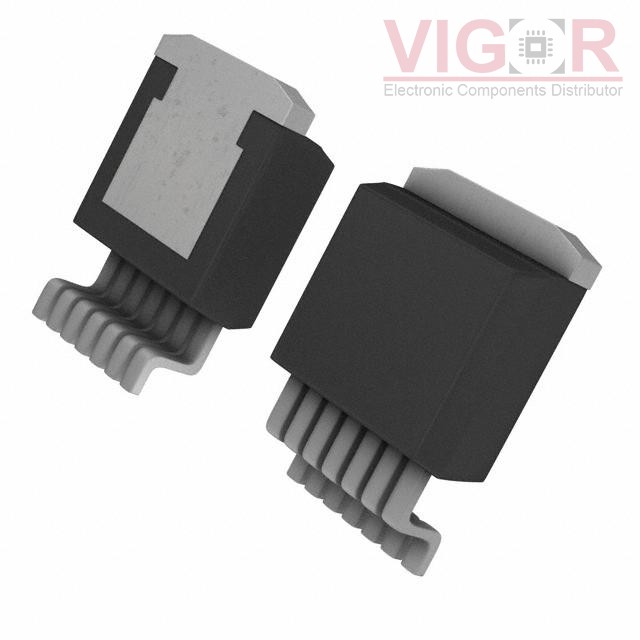

LT3091ER#PBF

LT3091ER#PBF

Image is for reference,
please contact us to get the real picture

Part No :

LT3091ER#PBF

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC REG LIN NEG ADJ 1.5A 7DDPAK
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
LT3091ER#PBF PDF
Availability
305 pieces
Unit Price
$7.67000

Current price of LT3091ER#PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LT3091ER#PBF Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Configuration:Negative
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):-36V
Voltage - Output (Min/Fixed):0V
Voltage - Output (Max):-32V
Voltage Dropout (Max):0.525V @ 1.5A
Current - Output:1.5A
Current - Quiescent (Iq):50.5 µA
Current - Supply (Max):-
PSRR:85dB ~ 20dB (120Hz ~ 1MHz)
Control Features:Current Limit, Enable
Protection Features:Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package:7-DDPAK
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TPS78618KTTRE3

TPS78618KTTRE3

IC REG LINEAR 1.8V 1.5A DDPAK
HOT XC6204B532MR-G

XC6204B532MR-G

IC REG LINEAR 5.3V 150MA SOT25
HOT ADP7158ARDZ-2.5-R7

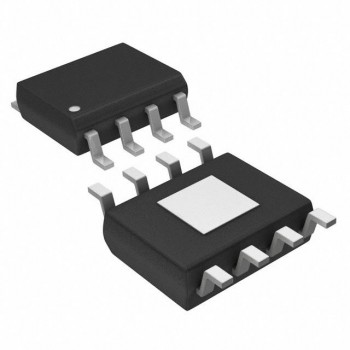

ADP7158ARDZ-2.5-R7
