AP7315D-11FS4-7B

AP7315D-11FS4-7B

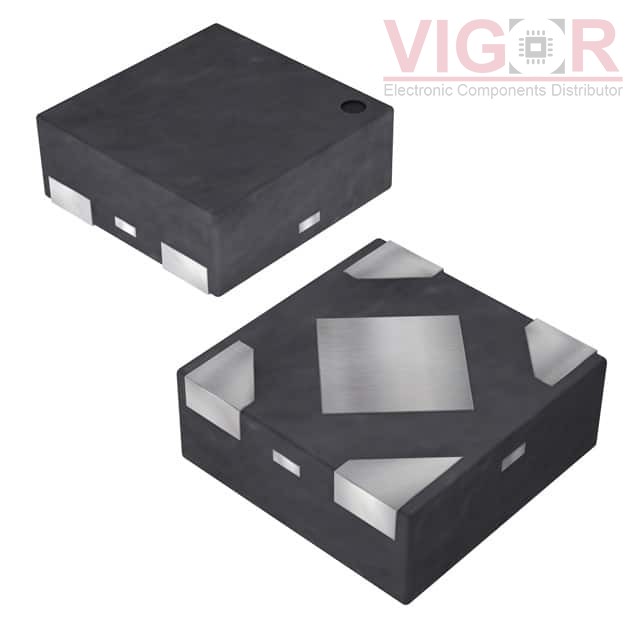

Image is for reference,
please contact us to get the real picture

Part No :

AP7315D-11FS4-7B

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC REG LINEAR 1.1V 150MA 4DFN
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
AP7315D-11FS4-7B PDF
Availability
90000 pieces
Unit Price
$0.13595

Current price of AP7315D-11FS4-7B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AP7315D-11FS4-7B Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):5.25V
Voltage - Output (Min/Fixed):1.1V
Voltage - Output (Max):-
Voltage Dropout (Max):0.64V @ 150mA
Current - Output:150mA
Current - Quiescent (Iq):60 µA
Current - Supply (Max):100 µA
PSRR:75dB (1kHz)
Control Features:-
Protection Features:Over Current
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:4-XDFN Exposed Pad
Supplier Device Package:X2-DFN1010-4
