NCP691MNADJT2G

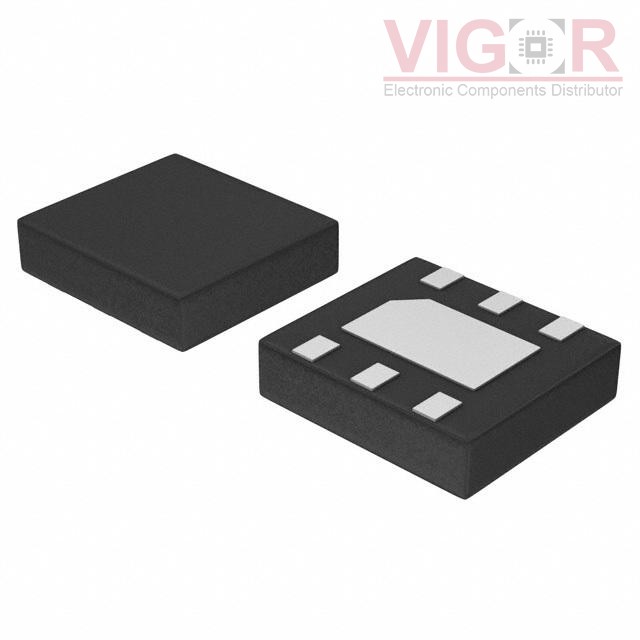

Image is for reference,
please contact us to get the real picture

Part No :: NCP691MNADJT2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC REG LINEAR POS ADJ 1A 6DFN

Catalog: PMIC - Voltage Regulators - Linear

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: NCP691MNADJT2G PDF

Availability: 290 pieces

Unit Price: ~~$1.39000~~

Current price of NCP691MNADJT2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NCP691MNADJT2G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Adjustable
Number of Regulators:	1
Voltage - Input (Max):	6V
Voltage - Output (Min/Fixed):	1.25V
Voltage - Output (Max):	5V
Voltage Dropout (Max):	0.47V @ 1A
Current - Output:	1A
Current - Quiescent (Iq):	200 µA
Current - Supply (Max):	240 µA
PSRR:	62dB ~ 40dB (120Hz ~ 10kHz)
Control Features:	Enable
Protection Features:	Over Temperature, Short Circuit
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	6-VDFN Exposed Pad
Supplier Device Package:	6-DFN (3x3)

Please confirm the specifications of the products when ordering.
