AP7345D-1815RH4-7

AP7345D-1815RH4-7

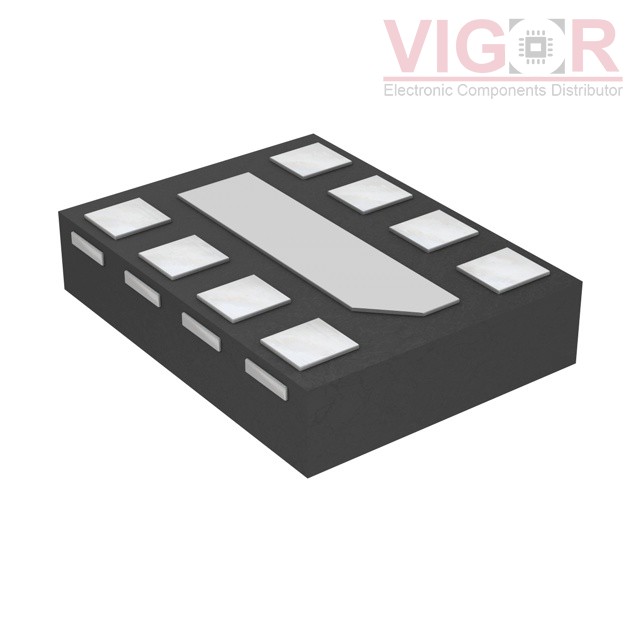

Image is for reference,
please contact us to get the real picture

Part No :

AP7345D-1815RH4-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC REG LIN 1.8V/1.5V 300MA 8DFN
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
AP7345D-1815RH4-7 PDF
Availability
4750 pieces
Unit Price
$0.36000

Current price of AP7345D-1815RH4-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AP7345D-1815RH4-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:2
Voltage - Input (Max):5.25V
Voltage - Output (Min/Fixed):1.8V, 1.5V
Voltage - Output (Max):-
Voltage Dropout (Max):0.39V @ 300mA, 0.44V @ 300mA
Current - Output:300mA, 300mA
Current - Quiescent (Iq):140 µA
Current - Supply (Max):70 µA
PSRR:75dB (1kHz)
Control Features:Current Limit, Enable
Protection Features:Short Circuit
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:8-XFDFN Exposed Pad
Supplier Device Package:X2-DFN1612-8
