LM1117ILD-5.0/NOPB

LM1117ILD-5.0/NOPB

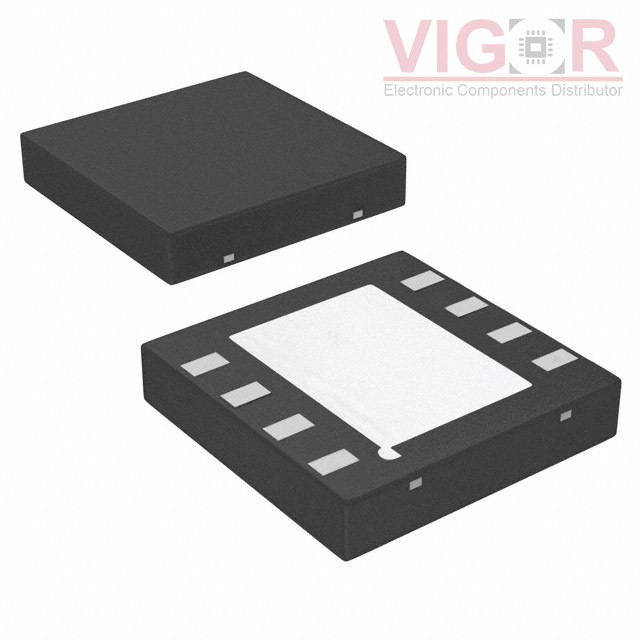

Image is for reference,
please contact us to get the real picture

Part No :

LM1117ILD-5.0/NOPB

Manufacturer
Texas Instruments
Description
IC REG LINEAR 5V 800MA 8WSON
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
LM1117ILD-5.0/NOPB PDF
Availability
1180 pieces
Unit Price
$0.00000

Current price of LM1117ILD-5.0/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LM1117ILD-5.0/NOPB Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):15V
Voltage - Output (Min/Fixed):5V
Voltage - Output (Max):-
Voltage Dropout (Max):1.2V @ 800mA
Current - Output:800mA
Current - Quiescent (Iq):5 mA
Current - Supply (Max):10 mA
PSRR:75dB (120Hz)
Control Features:-
Protection Features:Over Current, Over Temperature
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-WDFN Exposed Pad
Supplier Device Package:8-WSON (4x4)
