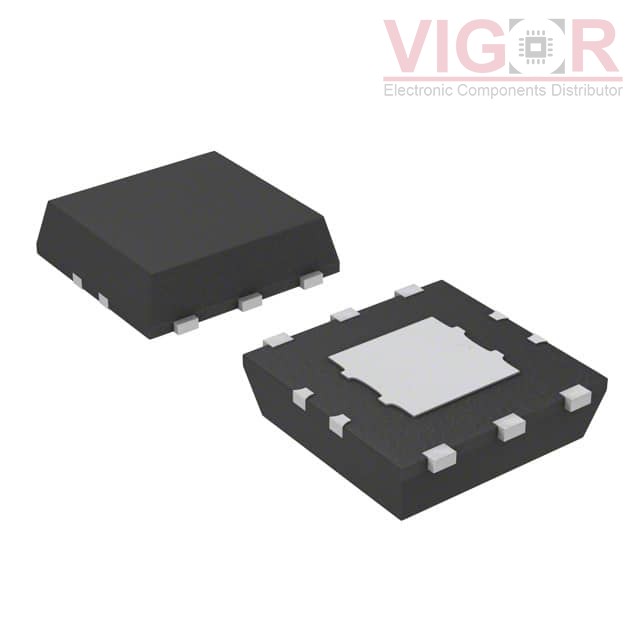

S-1170B20PD-OTFTFG

Image is for reference,
please contact us to get the real picture

Part No :: S-1170B20PD-OTFTFG

Manufacturer: ABLIC U.S.A. Inc.

Description: IC REG LINEAR 2V 800MA 6HSON

Catalog: PMIC - Voltage Regulators - Linear

Shipped from: HK warehouse

Expected Shipping Date: Aug 07 - Aug 11 2025

DataSheet: S-1170B20PD-OTFTFG PDF

Availability: 3325 pieces

Unit Price: ~~$0.00000~~

Current price of S-1170B20PD-OTFTFG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S-1170B20PD-OTFTFG Specifications

Type	Description
Series:	S-1170
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	6.5V
Voltage - Output (Min/Fixed):	2V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.26V @ 300mA
Current - Output:	800mA
Current - Quiescent (Iq):	1 µA
Current - Supply (Max):	160 µA
PSRR:	70dB (1kHz)
Control Features:	Enable
Protection Features:	Over Current, Thermal Shutdown
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Flat Lead Exposed Pad
Supplier Device Package:	6-HSON (A) (2.9x2.8)

Please confirm the specifications of the products when ordering.
