NJM78L15UA

NJM78L15UA

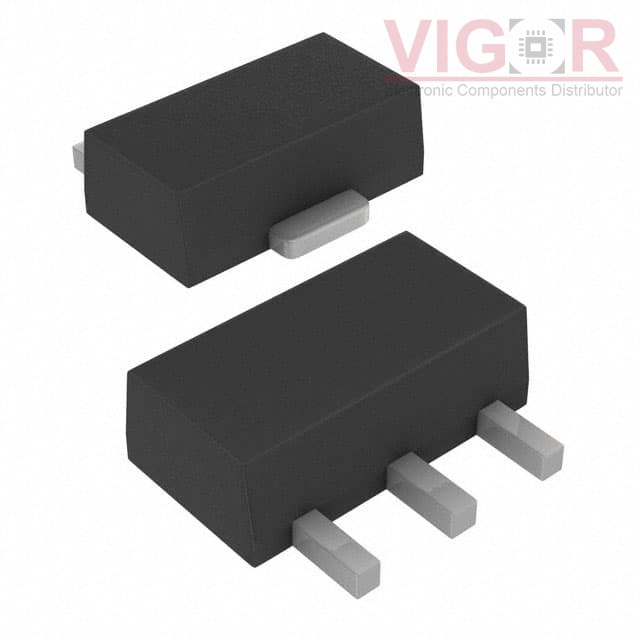

Image is for reference,
please contact us to get the real picture

Part No :

NJM78L15UA

Manufacturer
New Japan Radio (NJR)
Description
IC REG LINEAR 15V 100MA SOT89
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
NJM78L15UA PDF
Availability
197 pieces
Unit Price
$0.00000

Current price of NJM78L15UA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NJM78L15UA Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):35V
Voltage - Output (Min/Fixed):15V
Voltage - Output (Max):-
Voltage Dropout (Max):-
Current - Output:100mA
Current - Quiescent (Iq):6.5 mA
Current - Supply (Max):-
PSRR:60dB (120Hz)
Control Features:-
Protection Features:Over Temperature, Short Circuit
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89
