MAX15009ATJ+T

MAX15009ATJ+T

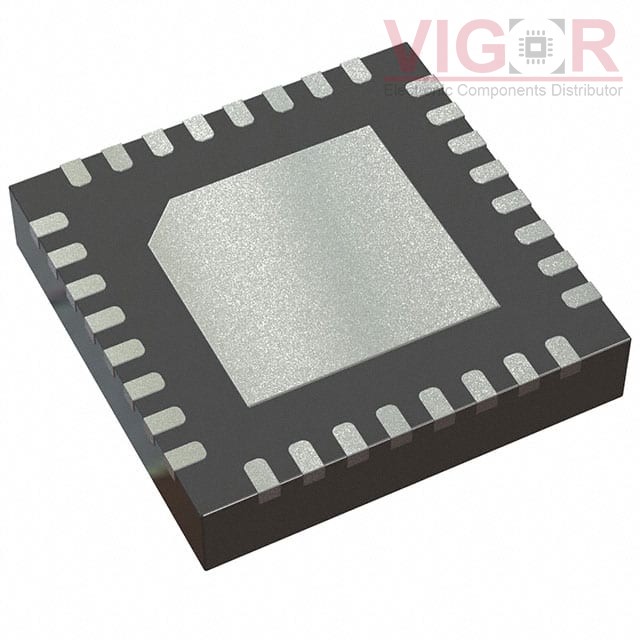

Image is for reference,
please contact us to get the real picture

Part No :

MAX15009ATJ+T

Manufacturer
Maxim Integrated
Description
IC REG LIN POS ADJ 300MA 32TQFN
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 12 - Aug 16 2025
DataSheet
MAX15009ATJ+T PDF
Availability
1316 pieces
Unit Price
$0.00000

Current price of MAX15009ATJ+T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAX15009ATJ+T Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Output Configuration:Positive
Output Type:Adjustable (Fixed)
Number of Regulators:1
Voltage - Input (Max):40V
Voltage - Output (Min/Fixed):1.8V, (5V)
Voltage - Output (Max):11V
Voltage Dropout (Max):1.5V @ 300mA
Current - Output:300mA
Current - Quiescent (Iq):85 µA
Current - Supply (Max):500 µA
PSRR:60dB (100Hz)
Control Features:Current Limit, Enable, Hold, Reset
Protection Features:Load Dump, Over Temperature, Over Voltage, Short Circuit
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:32-WFQFN Exposed Pad
Supplier Device Package:32-TQFN (5x5)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MC28L05-TP

MC28L05-TP

IC REG LINEAR 5V 100MA SOT23
HOT ST2L05R3300K5

ST2L05R3300K5

IC REG LIN POS ADJ 1A/1A 5SPAK

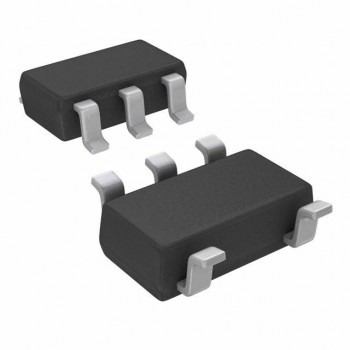

HOT ILC7071AIM527X
