NCV8502PDW100

NCV8502PDW100

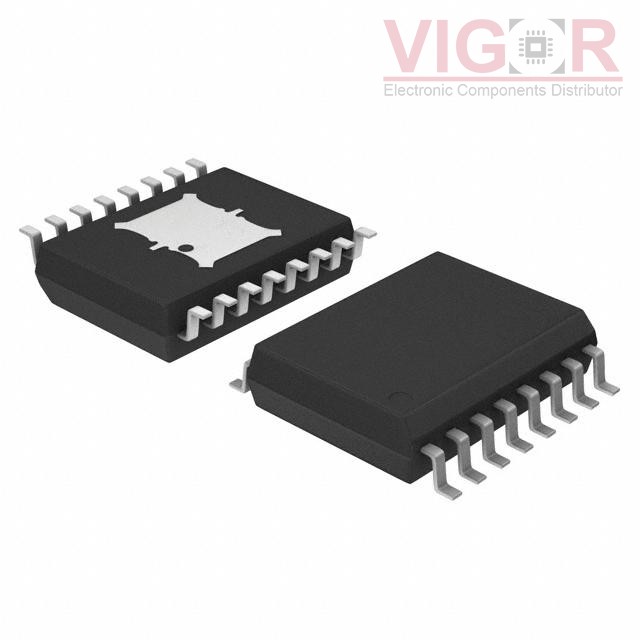

Image is for reference,
please contact us to get the real picture

Part No :

NCV8502PDW100

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC REG LINEAR 10V 150MA 16SOIC
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
NCV8502PDW100 PDF
Availability
833 pieces
Unit Price
$0.00000

Current price of NCV8502PDW100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NCV8502PDW100 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tube
Part Status:Obsolete
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):45V
Voltage - Output (Min/Fixed):10V
Voltage - Output (Max):-
Voltage Dropout (Max):0.6V @ 150mA
Current - Output:150mA
Current - Quiescent (Iq):150 µA
Current - Supply (Max):19 mA
PSRR:-
Control Features:Enable, Reset
Protection Features:Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature:-40°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package:16-SOIC
