AZ78L05RTR-E1

AZ78L05RTR-E1

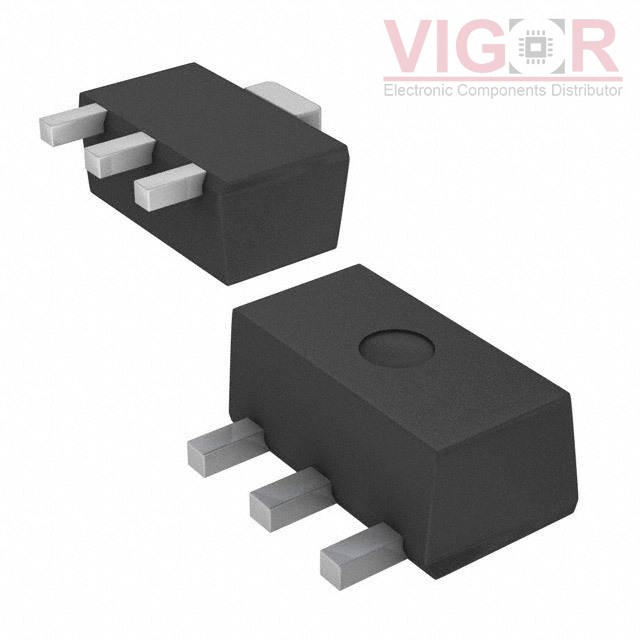

Image is for reference,
please contact us to get the real picture

Part No :

AZ78L05RTR-E1

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC REG LINEAR 5V 100MA SOT89
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
AZ78L05RTR-E1 PDF
Availability
8454 pieces
Unit Price
$0.00000

Current price of AZ78L05RTR-E1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AZ78L05RTR-E1 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):15V
Voltage - Output (Min/Fixed):5V
Voltage - Output (Max):-
Voltage Dropout (Max):1.6V @ 40mA (Typ)
Current - Output:100mA
Current - Quiescent (Iq):5 mA
Current - Supply (Max):-
PSRR:62dB (120Hz)
Control Features:-
Protection Features:Over Current, Over Temperature
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89-3
