ISO7763FDBQ

ISO7763FDBQ

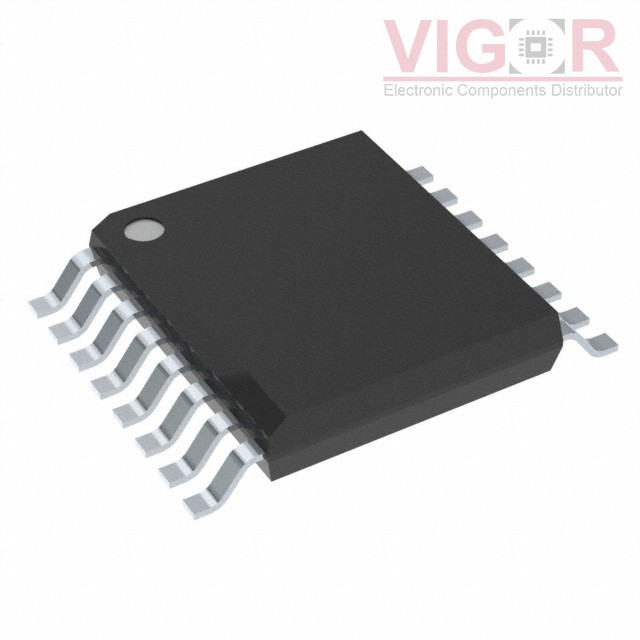

Image is for reference,
please contact us to get the real picture

Part No :

ISO7763FDBQ

Manufacturer
Texas Instruments
Description
DGTL ISO 3000VRMS 6CH GP 16SSOP
Catalog
Digital Isolators
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ISO7763FDBQ PDF
Availability
122 pieces
Unit Price
$4.99000

Current price of ISO7763FDBQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ISO7763FDBQ Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Technology:Capacitive Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:6
Inputs - Side 1/Side 2:3/3
Channel Type:Unidirectional
Voltage - Isolation:3000Vrms
Common Mode Transient Immunity (Min):85kV/µs
Data Rate:100Mbps
Propagation Delay tpLH / tpHL (Max):16ns, 16ns
Pulse Width Distortion (Max):4.9ns
Rise / Fall Time (Typ):1.1ns, 1.4ns
Voltage - Supply:2.25V ~ 5.5V
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-SSOP (0.154", 3.90mm Width)
Supplier Device Package:16-SSOP
