ISO7340CDWR

ISO7340CDWR

Image is for reference,
please contact us to get the real picture

Part No :

ISO7340CDWR

Manufacturer
Texas Instruments
Description
DGTL ISO 3000VRMS 4CH GP 16SOIC
Catalog
Digital Isolators
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
ISO7340CDWR PDF
Availability
291 pieces
Unit Price
$4.45000

Current price of ISO7340CDWR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ISO7340CDWR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Technology:Capacitive Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:4
Inputs - Side 1/Side 2:4/0
Channel Type:Unidirectional
Voltage - Isolation:3000Vrms
Common Mode Transient Immunity (Min):25kV/µs
Data Rate:25Mbps
Propagation Delay tpLH / tpHL (Max):58ns, 58ns
Pulse Width Distortion (Max):4ns
Rise / Fall Time (Typ):2.1ns, 1.7ns
Voltage - Supply:3V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SOIC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LTM2893IY-1#PBF

LTM2893IY-1#PBF

DGT ISOL 6000VRMS 10CH SPI 36BGA

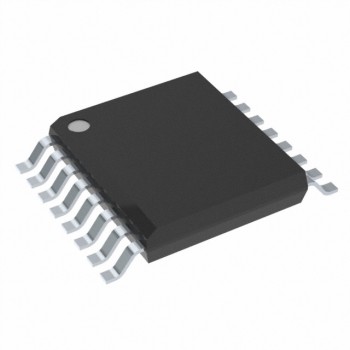

HOT ISO7741DBQ

ISO7741DBQ

DGTL ISO 3000VRMS 4CH GP 16SSOP

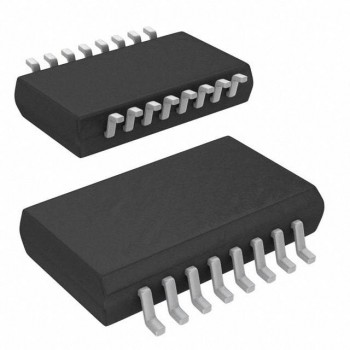

HOT ADUM162N1BRZ
