ADUM6420ABRNZ3-RL

ADUM6420ABRNZ3-RL

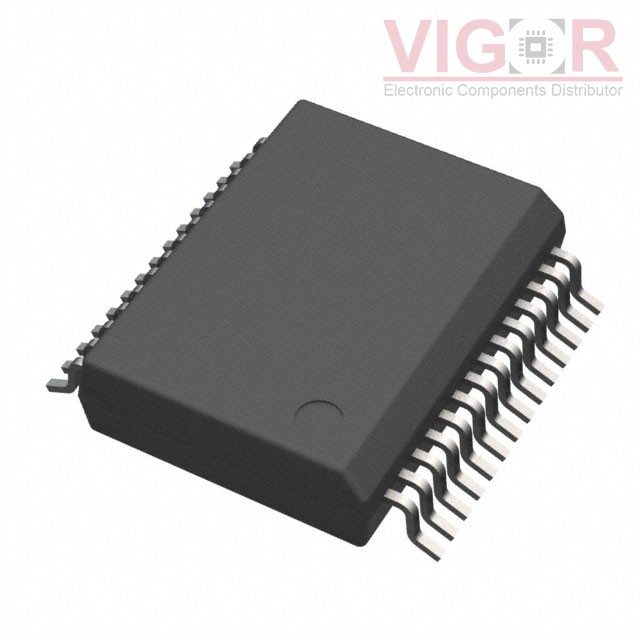

Image is for reference,
please contact us to get the real picture

Part No :

ADUM6420ABRNZ3-RL

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
ISOPOWER 5KV, LOWEMI, 4CH DATA 4
Catalog
Digital Isolators
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
ADUM6420ABRNZ3-RL PDF
Availability
0 pieces
Unit Price
$7.33500

Current price of ADUM6420ABRNZ3-RL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADUM6420ABRNZ3-RL Specifications
Type Description
Series:IsoPower®, iCoupler®
Package:Tape & Reel (TR)
Part Status:Active
Technology:Magnetic Coupling
Type:RS232
Isolated Power:No
Number of Channels:4
Inputs - Side 1/Side 2:4/0
Channel Type:Unidirectional
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):75kV/µs
Data Rate:100Mbps
Propagation Delay tpLH / tpHL (Max):17ns, 17ns
Pulse Width Distortion (Max):5ns
Rise / Fall Time (Typ):2.5ns, 2.5ns
Voltage - Supply:1.7V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package:28-SOIC-W-FP
