ISO7820LLDWWR

ISO7820LLDWWR

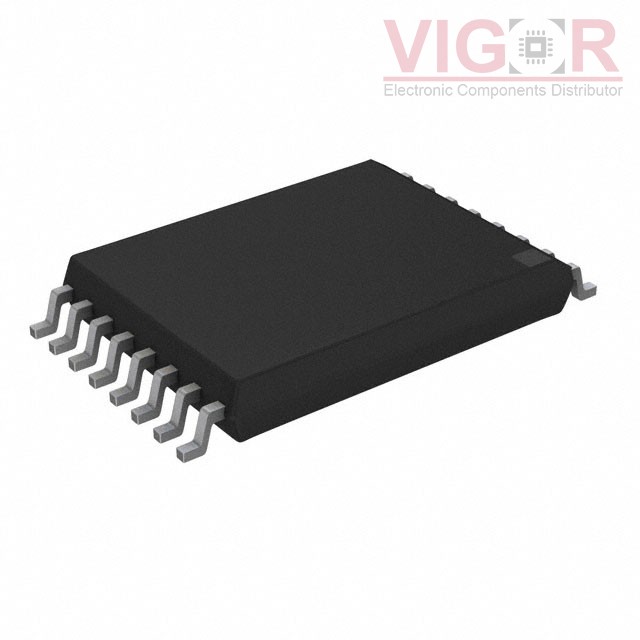

Image is for reference,
please contact us to get the real picture

Part No :

ISO7820LLDWWR

Manufacturer
Texas Instruments
Description
DGTL ISO 5700VRMS 2CH GP 16SOIC
Catalog
Digital Isolators
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
ISO7820LLDWWR PDF
Availability
0 pieces
Unit Price
$6.79078

Current price of ISO7820LLDWWR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ISO7820LLDWWR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Technology:Capacitive Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Channel Type:Unidirectional
Voltage - Isolation:5700Vrms
Common Mode Transient Immunity (Min):100kV/µs
Data Rate:100Mbps
Propagation Delay tpLH / tpHL (Max):25ns, 25ns
Pulse Width Distortion (Max):4.5ns
Rise / Fall Time (Typ):-
Voltage - Supply:2.25V ~ 5.5V
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.551", 14.00mm Width)
Supplier Device Package:16-SOIC
