ADUM230E0BRWZ

ADUM230E0BRWZ

Image is for reference,
please contact us to get the real picture

Part No :

ADUM230E0BRWZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
DGTL ISO 5000VRMS 3CH GP 16SOIC
Catalog
Digital Isolators
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
ADUM230E0BRWZ PDF
Availability
0 pieces
Unit Price
$2.49048

Current price of ADUM230E0BRWZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADUM230E0BRWZ Specifications
Type Description
Series:iCoupler®
Package:Tube
Part Status:Active
Technology:Magnetic Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:3
Inputs - Side 1/Side 2:3/0
Channel Type:Unidirectional
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):75kV/µs
Data Rate:150Mbps
Propagation Delay tpLH / tpHL (Max):13ns, 13ns
Pulse Width Distortion (Max):3ns
Rise / Fall Time (Typ):2.5ns, 2.5ns
Voltage - Supply:1.7V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SOIC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT ISOW7844DWER

ISOW7844DWER

DGTL ISO 5000VRMS 4CH GP 16SOIC

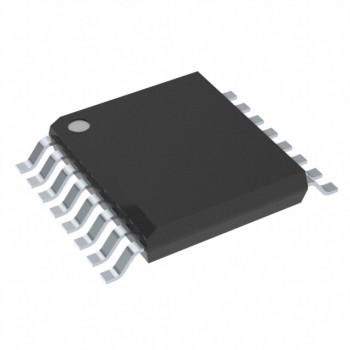

HOT ISO7762FDBQ

ISO7762FDBQ

DGTL ISO 3000VRMS 6CH GP 16SSOP

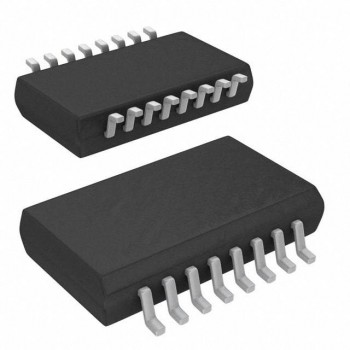

HOT ADUM130D1BRZ
