SI8275DA-IM1

SI8275DA-IM1

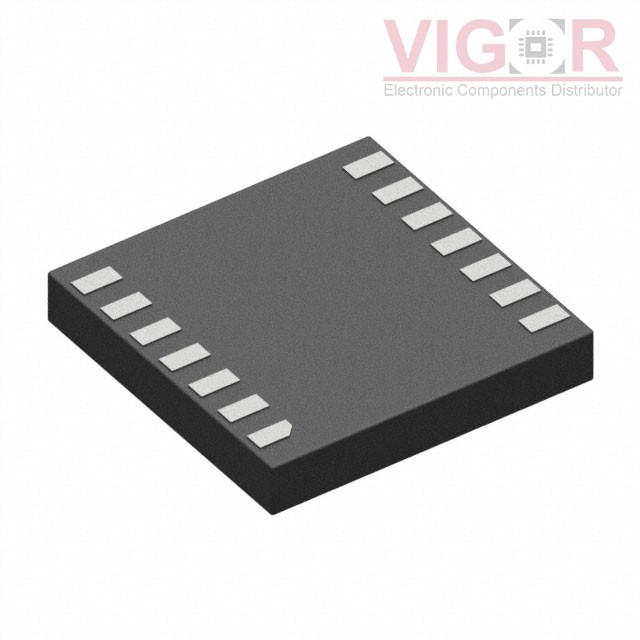

Image is for reference,
please contact us to get the real picture

Part No :

SI8275DA-IM1

Manufacturer
Silicon Labs
Description
4A 2.5 KV HIGH CMTI DUAL GATE DR
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
SI8275DA-IM1 PDF
Availability
475 pieces
Unit Price
$2.66000

Current price of SI8275DA-IM1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SI8275DA-IM1 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tube
Part Status:Active
Technology:Capacitive Coupling
Number of Channels:2
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):150kV/µs
Propagation Delay tpLH / tpHL (Max):60ns, 60ns
Pulse Width Distortion (Max):8ns
Rise / Fall Time (Typ):10.5ns, 13.3ns
Current - Output High, Low:1.8A, 4A
Current - Peak Output:4A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:4.2V ~ 30V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:14-VDFN
Supplier Device Package:14-QFN (5x5)
Approval Agency:CQC, CSA, UL, VDE
