1ED3830MU12MXUMA1

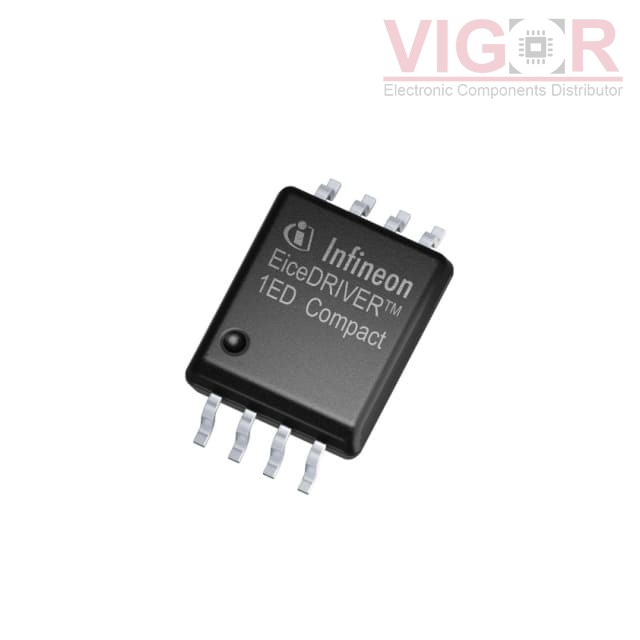

Image is for reference,
please contact us to get the real picture

Part No :

1ED3830MU12MXUMA1

Manufacturer
IR (Infineon Technologies)
Description
1ED3830MU12MXUMA1
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
1ED3830MU12MXUMA1 PDF
Availability
1000 pieces
Unit Price
$6.98000

Current price of 1ED3830MU12MXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:EiceDriver™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Technology:Capacitive Coupling
Number of Channels:1
Voltage - Isolation:-
Common Mode Transient Immunity (Min):-
Propagation Delay tpLH / tpHL (Max):-
Pulse Width Distortion (Max):-
Rise / Fall Time (Typ):15ns, 15ns
Current - Output High, Low:-
Current - Peak Output:3A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:13V ~ 25V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-BSSOP (0.295", 7.50mm Width)
Supplier Device Package:PG-DSO-16-28
Approval Agency:UL, VDE
