ACPL-36JV-000E

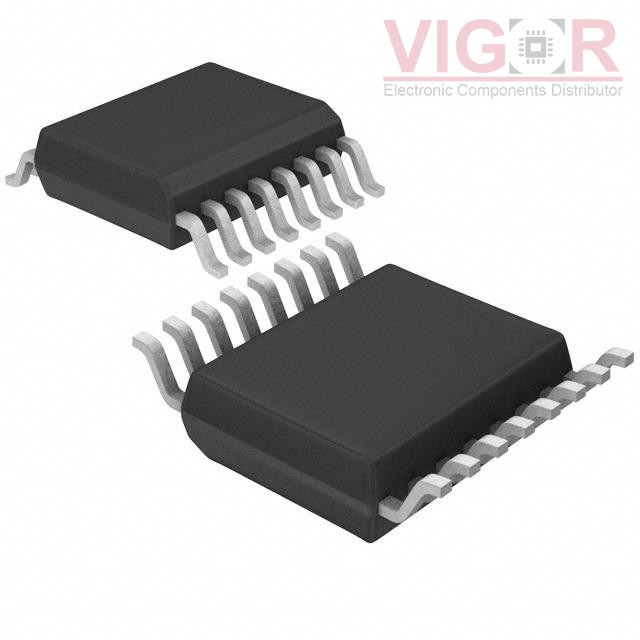

Image is for reference,
please contact us to get the real picture

Part No :: ACPL-36JV-000E

Manufacturer: Broadcom

Description: OPTOISO 3.75KV 1CH GATE DVR 16SO

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: ACPL-36JV-000E PDF

Availability: 570 pieces

Unit Price: ~~$9.22000~~

Current price of ACPL-36JV-000E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-36JV-000E Specifications

Type	Description
Series:	Automotive, AEC-Q100, R²Coupler™
Package:	Tube
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Propagation Delay tpLH / tpHL (Max):	500ns, 500ns
Pulse Width Distortion (Max):	300ns
Rise / Fall Time (Typ):	100ns, 100ns
Current - Output High, Low:	2A, 2A
Current - Peak Output:	2.5A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	15V ~ 30V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	16-SO
Approval Agency:	-
