VO3120-X019T

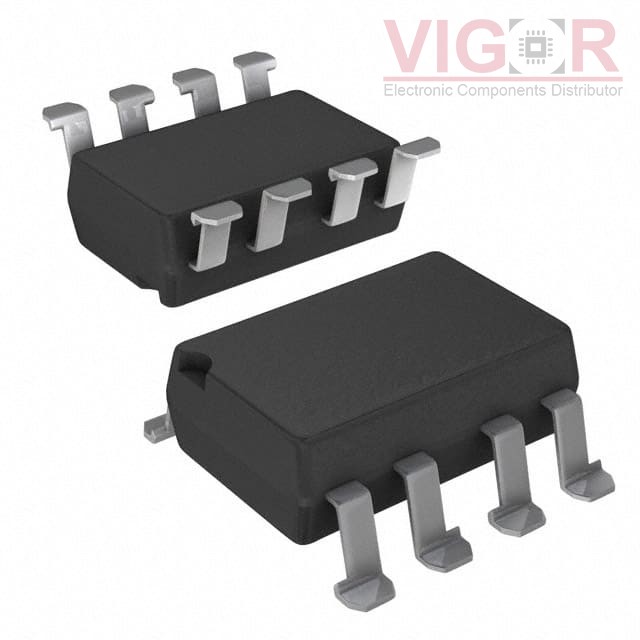

Image is for reference,
please contact us to get the real picture

Part No :: VO3120-X019T

Manufacturer: Vishay / Semiconductor - Opto Division

Description: OPTOISO 5.3KV 1CH GATE DRVR 8SMD

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: VO3120-X019T PDF

Availability: 761 pieces

Unit Price: ~~$2.13000~~

Current price of VO3120-X019T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VO3120-X019T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Common Mode Transient Immunity (Min):	25kV/µs
Propagation Delay tpLH / tpHL (Max):	400ns, 400ns
Pulse Width Distortion (Max):	200ns
Rise / Fall Time (Typ):	100ns, 100ns
Current - Output High, Low:	2.5A, 2.5A
Current - Peak Output:	2.5A
Voltage - Forward (Vf) (Typ):	1.6V (Max)
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	15V ~ 32V
Operating Temperature:	-40°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Gull Wing
Supplier Device Package:	8-SMD
Approval Agency:	cUR, UR, VDE

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
