UCC23513BDWY

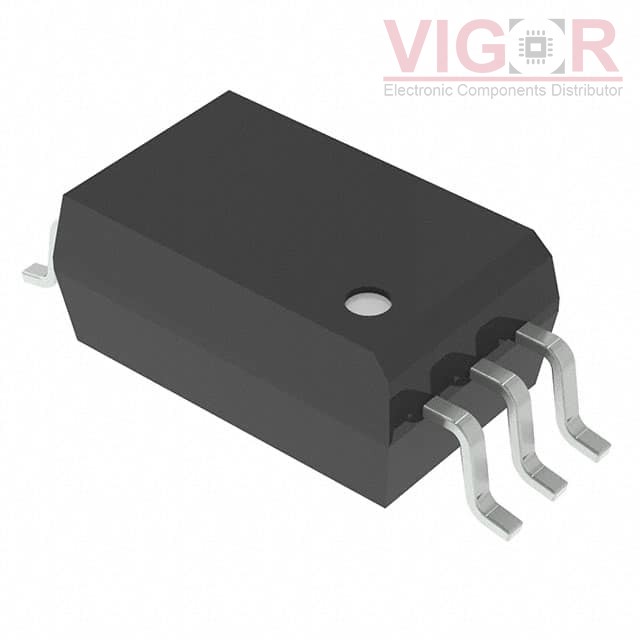

Image is for reference,
please contact us to get the real picture

Part No :: UCC23513BDWY

Manufacturer: Texas Instruments

Description: 3A- SGNL CHAN ISO GD WITH OPTO 5

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 07 - Jul 11 2025

DataSheet: UCC23513BDWY PDF

Availability: 2294 pieces

Unit Price: ~~$2.30000~~

Current price of UCC23513BDWY is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UCC23513BDWY Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5700Vrms
Common Mode Transient Immunity (Min):	150kV/µs
Propagation Delay tpLH / tpHL (Max):	105ns, 105ns
Pulse Width Distortion (Max):	35ns
Rise / Fall Time (Typ):	28ns, 25ns (Max)
Current - Output High, Low:	4.5A, 5.3A
Current - Peak Output:	4.5A, 5.3A
Voltage - Forward (Vf) (Typ):	2.1V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	10V ~ 33V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	6-SOIC
Approval Agency:	CQC, UL, VDE
