FOD3182

FOD3182

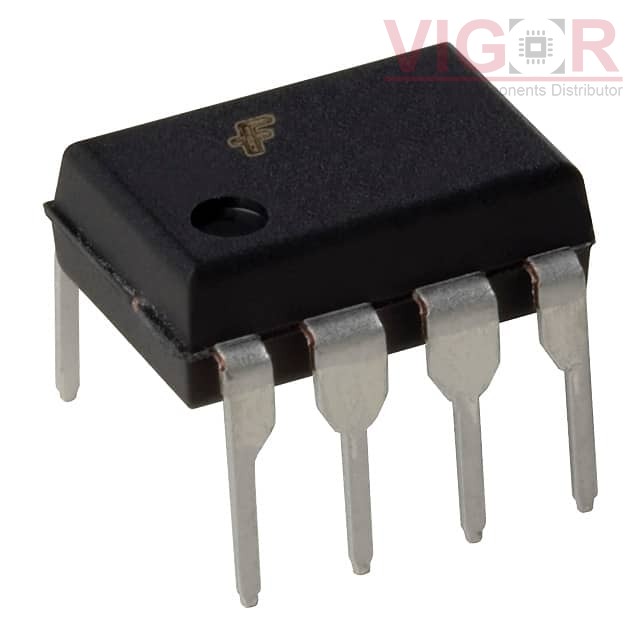

Image is for reference,
please contact us to get the real picture

Part No :

FOD3182

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
OPTOISO 5KV 1CH GATE DRIVER 8DIP
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
FOD3182 PDF
Availability
1419 pieces
Unit Price
$2.89000

Current price of FOD3182 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FOD3182 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):35kV/µs
Propagation Delay tpLH / tpHL (Max):210ns, 210ns
Pulse Width Distortion (Max):65ns
Rise / Fall Time (Typ):38ns, 24ns
Current - Output High, Low:2.5A, 2.5A
Current - Peak Output:3A
Voltage - Forward (Vf) (Typ):1.43V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:10V ~ 30V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
Approval Agency:UL
