PS9306L-E3-AX

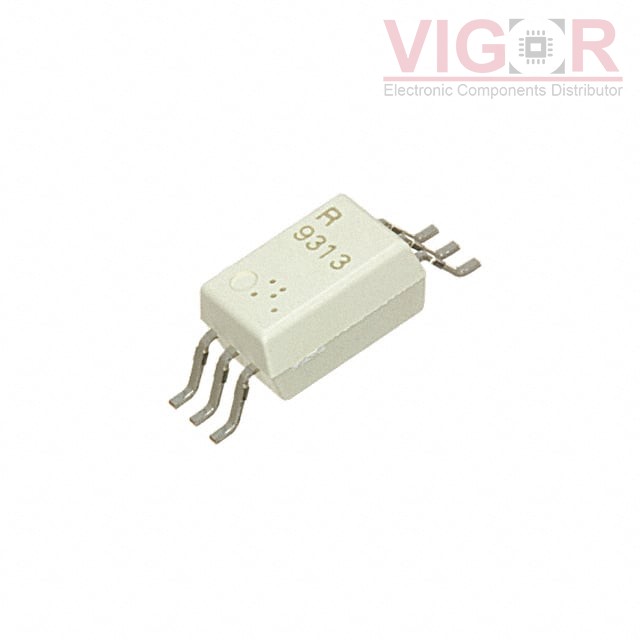

Image is for reference,
please contact us to get the real picture

Part No :: PS9306L-E3-AX

Manufacturer: Renesas Electronics America

Description: OPTOISO 5KV 1CH GATE DRVR 6SDIP

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: PS9306L-E3-AX PDF

Availability: 0 pieces

Unit Price: ~~$1.50300~~

Current price of PS9306L-E3-AX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS9306L-E3-AX Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	25kV/µs
Propagation Delay tpLH / tpHL (Max):	400ns, 400ns
Pulse Width Distortion (Max):	250ns
Rise / Fall Time (Typ):	50ns, 50ns
Current - Output High, Low:	400mA, 400mA
Current - Peak Output:	600mA
Voltage - Forward (Vf) (Typ):	1.56V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	10V ~ 30V
Operating Temperature:	-40°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:	6-SDIP
Approval Agency:	CSA, SEMKO, UL

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
