TLP352F(TP4,F)

TLP352F(TP4,F)

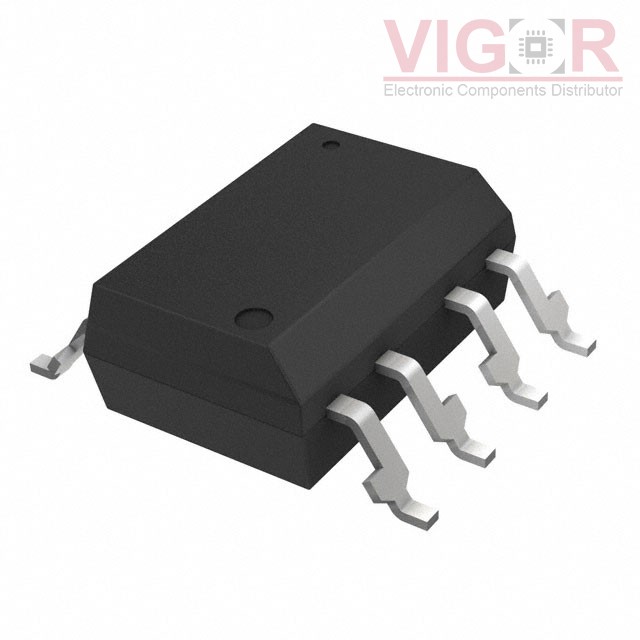

Image is for reference,
please contact us to get the real picture

Part No :

TLP352F(TP4,F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
X36 PB-F PHOTOCOUPLER SMD GULL W
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
TLP352F(TP4,F) PDF
Availability
0 pieces
Unit Price
$0.75000

Current price of TLP352F(TP4,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP352F(TP4,F) Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):20kV/µs
Propagation Delay tpLH / tpHL (Max):200ns, 200ns
Pulse Width Distortion (Max):50ns
Rise / Fall Time (Typ):15ns, 8ns
Current - Output High, Low:2A, 2A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):1.55V
Current - DC Forward (If) (Max):20 mA
Voltage - Output Supply:15V ~ 30V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-SMD
Approval Agency:cUR, UR, VDE
