STGAP2SICS

STGAP2SICS

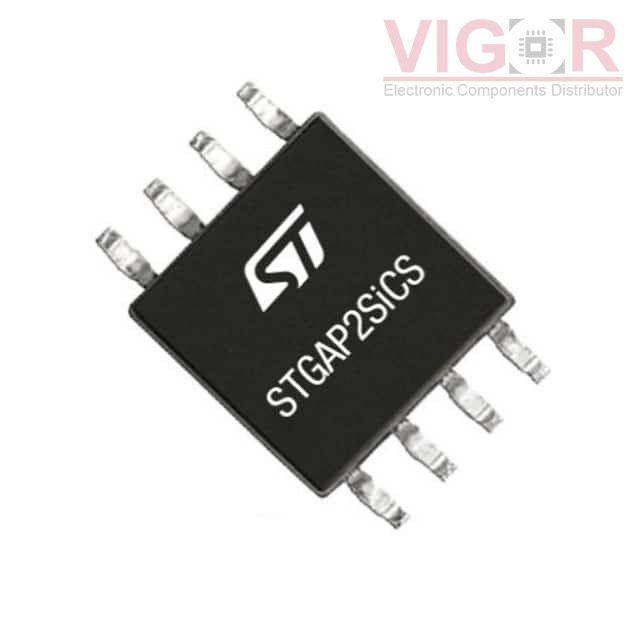

Image is for reference,
please contact us to get the real picture

Part No :

STGAP2SICS

Manufacturer
STMicroelectronics
Description
GALVANICALLY ISOLATED 4 A SINGLE
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
STGAP2SICS PDF
Availability
453 pieces
Unit Price
$3.01000

Current price of STGAP2SICS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGAP2SICS Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Technology:Capacitive Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):100V/ns
Propagation Delay tpLH / tpHL (Max):90ns, 90ns
Pulse Width Distortion (Max):20ns
Rise / Fall Time (Typ):30ns, 30ns
Current - Output High, Low:4A, 4A
Current - Peak Output:4A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:3V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:8-SO
Approval Agency:UL
