SI8273ABD-IM1

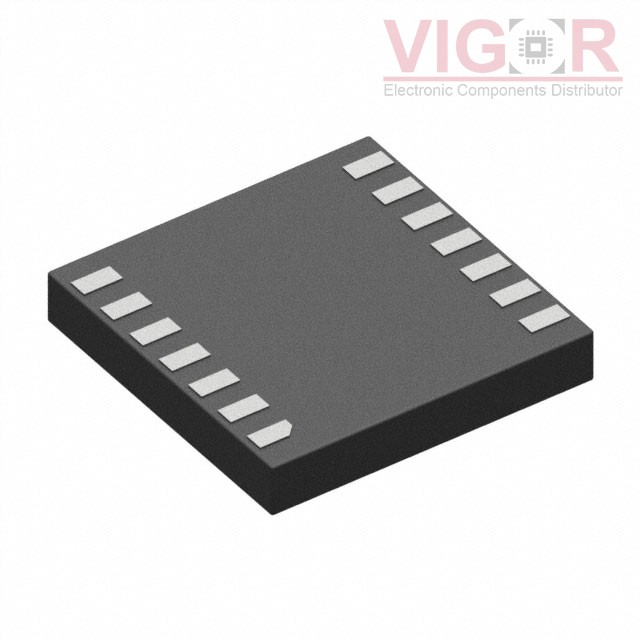

Image is for reference,
please contact us to get the real picture

Part No :: SI8273ABD-IM1

Manufacturer: Silicon Labs

Description: DGTL ISO 2.5KV GATE DRIVER 14LGA

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: SI8273ABD-IM1 PDF

Availability: 0 pieces

Unit Price: ~~$2.67000~~

Current price of SI8273ABD-IM1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SI8273ABD-IM1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tube
Part Status:	Active
Technology:	Capacitive Coupling
Number of Channels:	2
Voltage - Isolation:	2500Vrms
Common Mode Transient Immunity (Min):	200kV/µs
Propagation Delay tpLH / tpHL (Max):	75ns, 75ns
Pulse Width Distortion (Max):	8ns
Rise / Fall Time (Typ):	10.5ns, 13.3ns
Current - Output High, Low:	1.8A, 4A
Current - Peak Output:	4A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	14-VDFN
Supplier Device Package:	14-QFN (5x5)
Approval Agency:	CQC, CSA, UR, VDE
