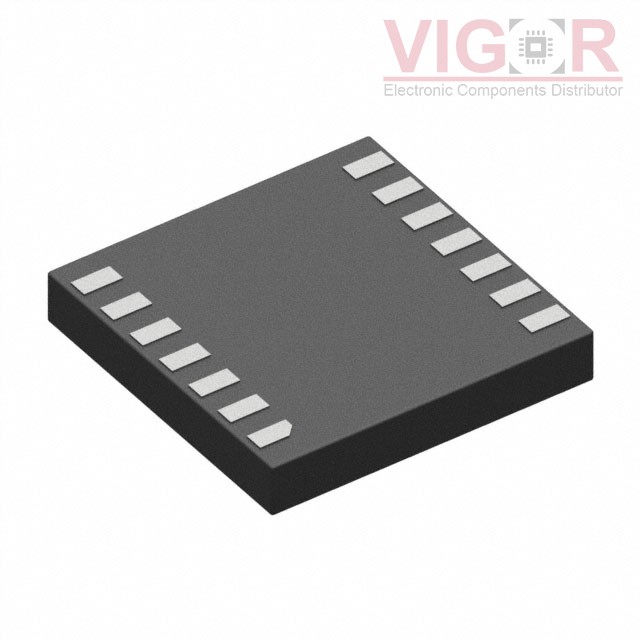

SI8274AB1-IM1

SI8274AB1-IM1

Image is for reference,
please contact us to get the real picture

Part No :

SI8274AB1-IM1

Manufacturer
Silicon Labs
Description
DGTL ISO 2.5KV GATE DRIVER 14LGA
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
SI8274AB1-IM1 PDF
Availability
140 pieces
Unit Price
$2.67000

Current price of SI8274AB1-IM1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SI8274AB1-IM1 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tube
Part Status:Active
Technology:Capacitive Coupling
Number of Channels:2
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):200kV/µs
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Pulse Width Distortion (Max):19ns
Rise / Fall Time (Typ):10.5ns, 13.3ns
Current - Output High, Low:1.8A, 4A
Current - Peak Output:4A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:4.2V ~ 30V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:14-VDFN
Supplier Device Package:14-QFN (5x5)
Approval Agency:CQC, CSA, UR, VDE
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

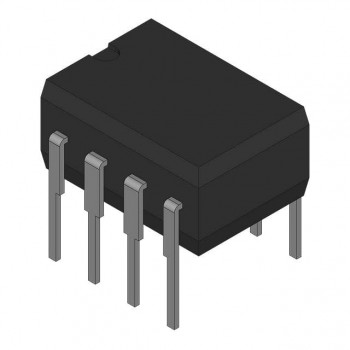

HOT FOD3181V
