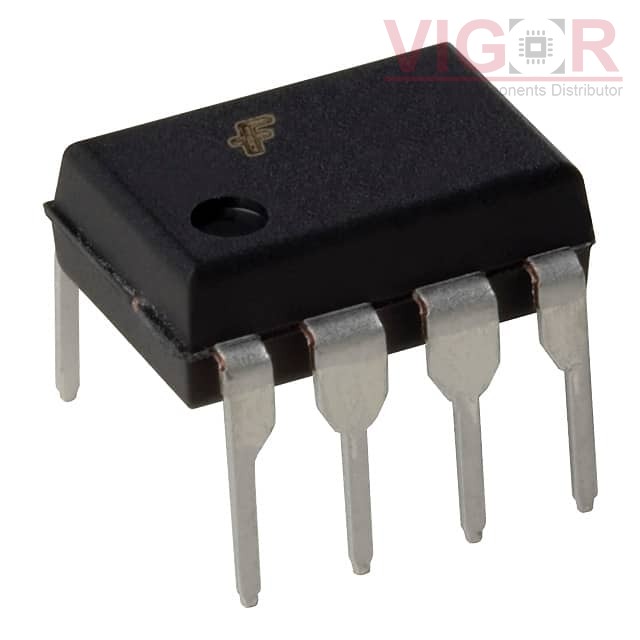

FOD3180

FOD3180

Image is for reference,
please contact us to get the real picture

Part No :

FOD3180

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
OPTOISO 5KV 1CH GATE DRIVER 8DIP
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
FOD3180 PDF
Availability
92 pieces
Unit Price
$2.93000

Current price of FOD3180 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FOD3180 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):15kV/µs
Propagation Delay tpLH / tpHL (Max):200ns, 200ns
Pulse Width Distortion (Max):65ns
Rise / Fall Time (Typ):75ns, 55ns
Current - Output High, Low:2A, 2A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):1.43V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:10V ~ 20V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
Approval Agency:cUL, UL
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT UCC21540DW

UCC21540DW

PWR MGMT PWM CONTROLLER
HOT 1ED3491MU12MXUMA1

1ED3491MU12MXUMA1

1ED3491MU12MXUMA1

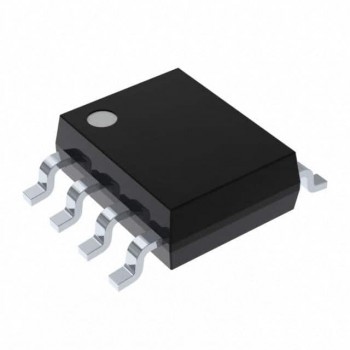

HOT MAX22700EASA+
