UCC20225NPLR

UCC20225NPLR

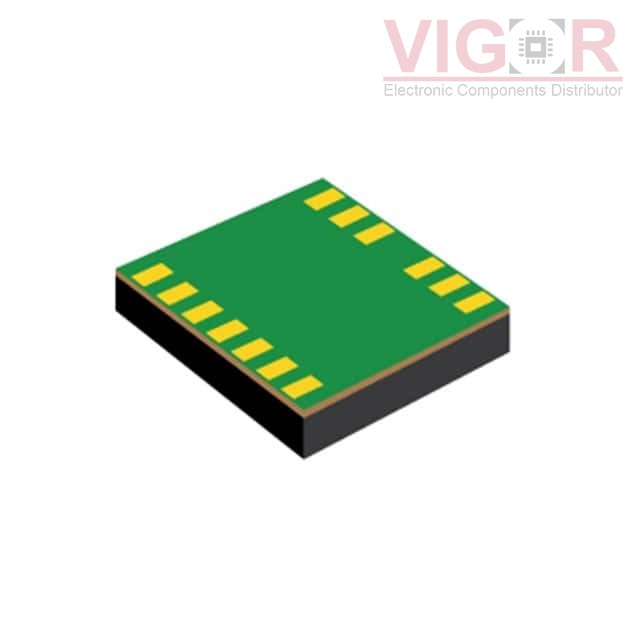

Image is for reference,
please contact us to get the real picture

Part No :

UCC20225NPLR

Manufacturer
Texas Instruments
Description
UCC20225NPLR
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
UCC20225NPLR PDF
Availability
1395 pieces
Unit Price
$3.23000

Current price of UCC20225NPLR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UCC20225NPLR Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Technology:Capacitive Coupling
Number of Channels:2
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):100V/ns
Propagation Delay tpLH / tpHL (Max):30ns, 30ns
Pulse Width Distortion (Max):6ns
Rise / Fall Time (Typ):6ns, 7ns
Current - Output High, Low:4A, 6A
Current - Peak Output:-
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:3V ~ 18V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:13-VFLGA
Supplier Device Package:13-VLGA (5x5)
Approval Agency:CQC, CSA, UR, VDE
