ACPL-W343-560E

ACPL-W343-560E

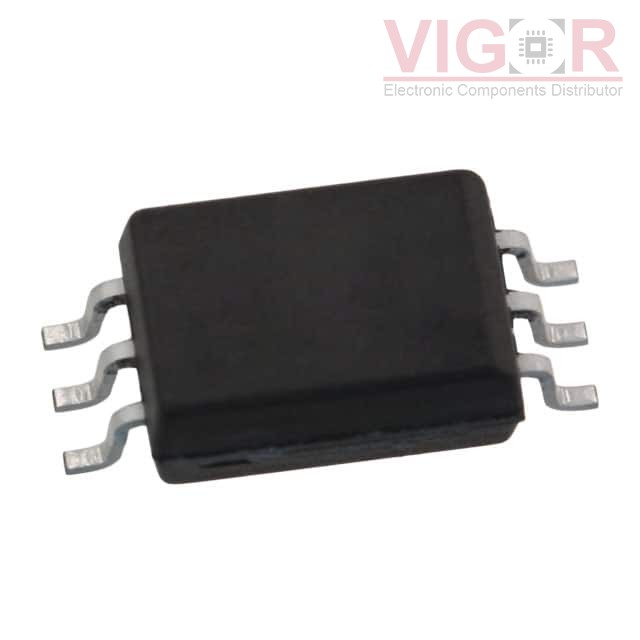

Image is for reference,
please contact us to get the real picture

Part No :

ACPL-W343-560E

Manufacturer
Broadcom
Description
OPTOISO 5KV 1CH GATE DRIVER 6SO
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
ACPL-W343-560E PDF
Availability
0 pieces
Unit Price
$1.71641

Current price of ACPL-W343-560E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-W343-560E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):35kV/µs
Propagation Delay tpLH / tpHL (Max):200ns, 200ns
Pulse Width Distortion (Max):70ns
Rise / Fall Time (Typ):43ns, 40ns
Current - Output High, Low:3A, 3A
Current - Peak Output:4A
Voltage - Forward (Vf) (Typ):1.55V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:15V ~ 30V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:6-SO Stretched
Approval Agency:CSA, IEC/EN/DIN, UR
