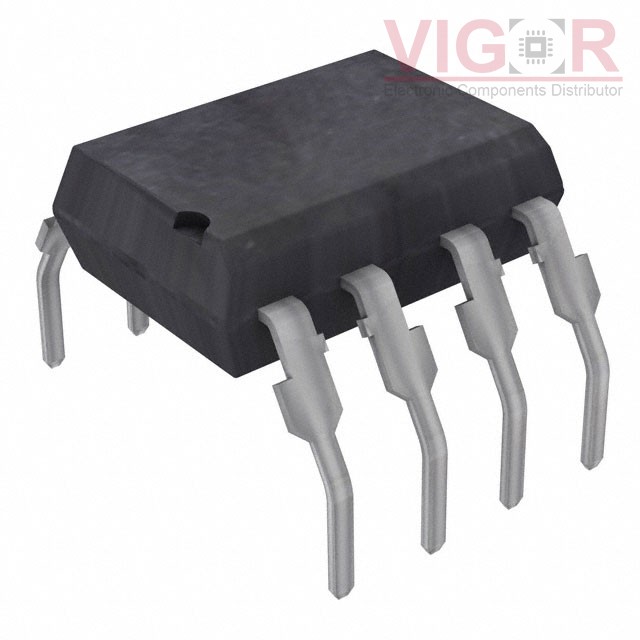

VOD3120AG

Image is for reference,
please contact us to get the real picture

Part No :: VOD3120AG

Manufacturer: Vishay / Semiconductor - Opto Division

Description: OPTOISO IGBT MOSFET DRIVER 2.5A

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Aug 13 - Aug 17 2025

DataSheet: VOD3120AG PDF

Availability: 1798 pieces

Unit Price: ~~$1.83000~~

Current price of VOD3120AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VOD3120AG Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Common Mode Transient Immunity (Min):	35kV/µs
Propagation Delay tpLH / tpHL (Max):	500ns, 500ns
Pulse Width Distortion (Max):	70ns
Rise / Fall Time (Typ):	35ns, 35ns
Current - Output High, Low:	2.5A
Current - Peak Output:	2.5A
Voltage - Forward (Vf) (Typ):	1.37V
Current - DC Forward (If) (Max):	20 mA
Voltage - Output Supply:	15V ~ 30V
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.400", 10.16mm)
Supplier Device Package:	8-DIP
Approval Agency:	CQC, cUL, UL, VDE

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

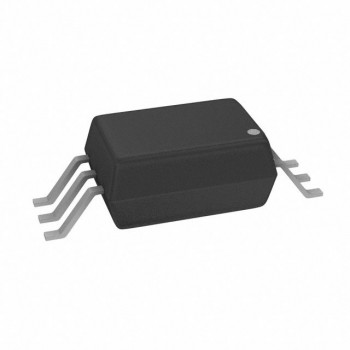

FOD8342R2V

OPTOISO 5KV 1CH GATE DRIVER 6SOP

HOT

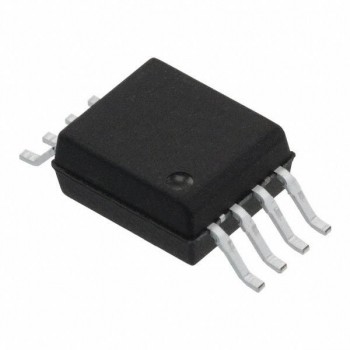

ACPL-K312-500E
