HCPL-3120#560

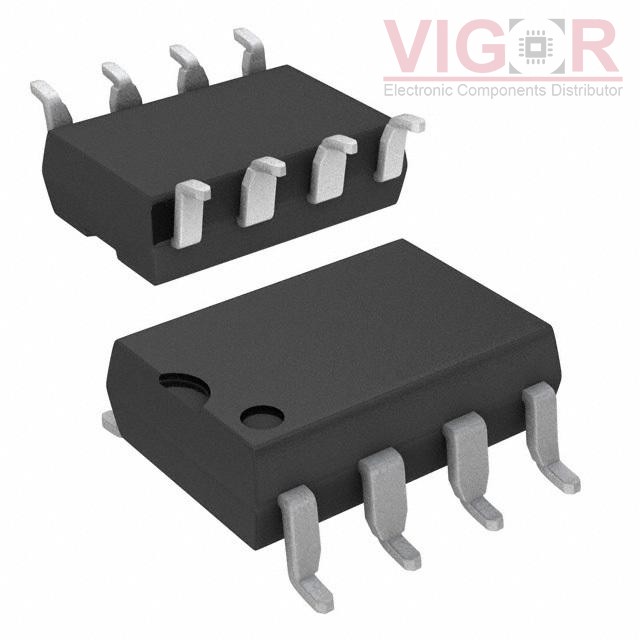

Image is for reference,
please contact us to get the real picture

Part No :: HCPL-3120#560

Manufacturer: Broadcom

Description: OPTOISO 3.75KV GATE DRVR 8DIP GW

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Aug 25 - Aug 29 2025

DataSheet: HCPL-3120#560 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of HCPL-3120#560 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-3120#560 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Discontinued at Digi-Key
Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	25kV/µs
Propagation Delay tpLH / tpHL (Max):	500ns, 500ns
Pulse Width Distortion (Max):	300ns
Rise / Fall Time (Typ):	100ns, 100ns
Current - Output High, Low:	2A, 2A
Current - Peak Output:	2.5A
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	15V ~ 30V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Gull Wing
Supplier Device Package:	8-DIP Gull Wing
Approval Agency:	CSA, IEC/EN/DIN, UR
