PS9317L-V-E3-AX

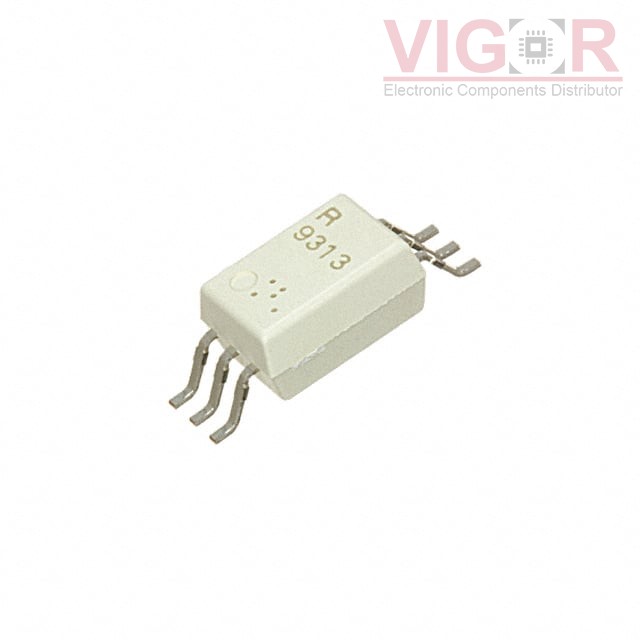

Image is for reference,
please contact us to get the real picture

Part No :: PS9317L-V-E3-AX

Manufacturer: Renesas Electronics America

Description: HI-SPD OPTOCPLR 6PIN SDIP

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: PS9317L-V-E3-AX PDF

Availability: 0 pieces

Unit Price: ~~$1.95941~~

Current price of PS9317L-V-E3-AX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS9317L-V-E3-AX Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Input Type:	DC
Output Type:	Open Collector
Current - Output / Channel:	25 mA
Data Rate:	10Mbps
Propagation Delay tpLH / tpHL (Max):	75ns, 75ns
Rise / Fall Time (Typ):	20ns, 5ns
Voltage - Forward (Vf) (Typ):	1.56V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:	6-SDIP

Please confirm the specifications of the products when ordering.
